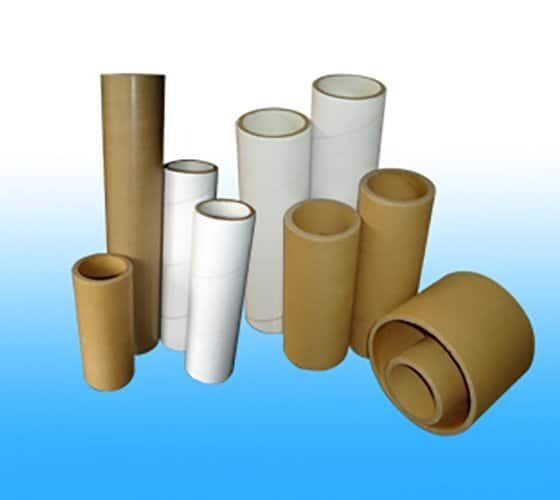

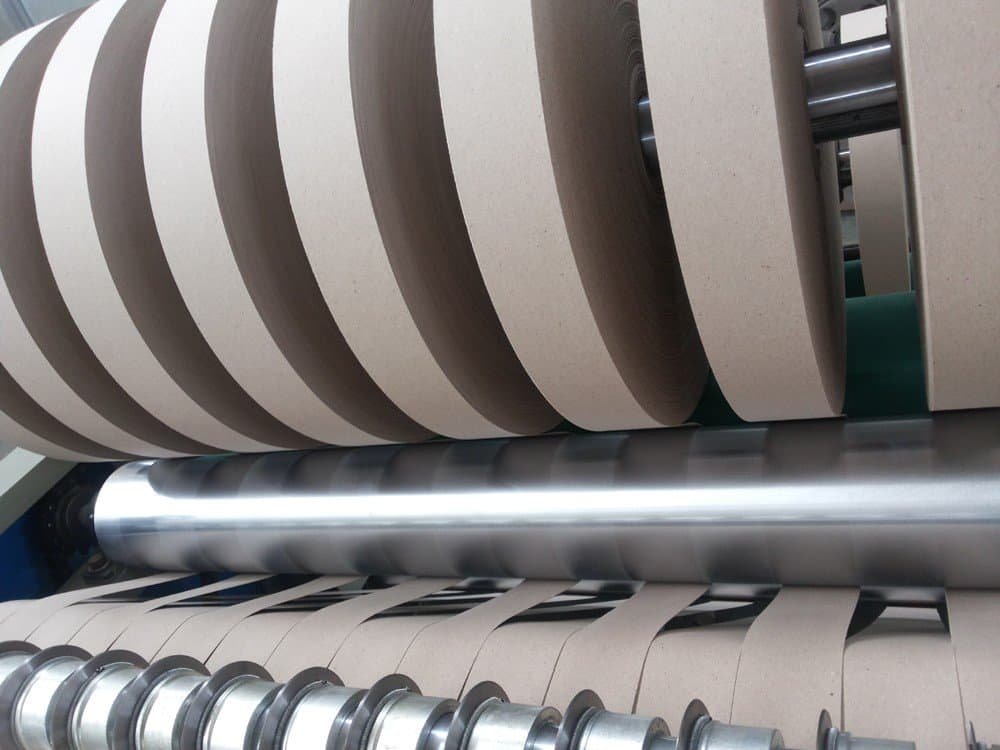

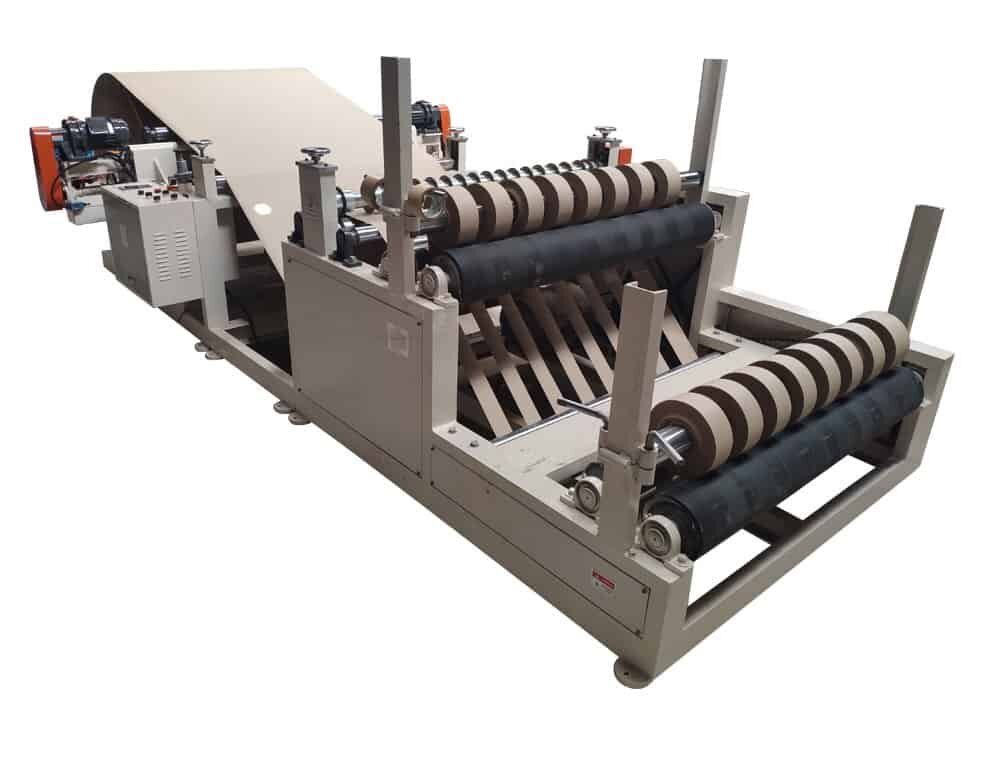

This machine is mainly used to slit and rewind the core paper board,the white coated paper, kraft paper, corrugated board, sand-coated paper and all kind of packaging paper. It features of reasonable design, good performance, stable running, simple operation and high speed running, suitable for the paper mills, tissue converting plants and core making plants for the production of cores.
| Model | AI600 |
|---|---|
| Structure of machine | Wallboard |
| size of finished product(mm) | Customized |
| Machine type | Slitting and rewinding |
| Raw material type | Kraft paper roll |
| Diameter of raw material | 1000-1400mm |
| Diameter of core | 3inches |
1)Speed：0-180m/min
2)Raw paper:60g-600g(square meter)
3)Maximum diameter rewind：≦1200mm
4)Diameter of the raw paper roll:≦1400mm
5)Width raw paper: ≦2800mm
6)Width of cut：65mm
7)Diameter of paper core:3inches
8)Power：22KW (380V,50Hz)
9)Overall size: 5000X4550X2050mm
10)Machine weight: 3ton
