ft20a facial tissue paper making machine

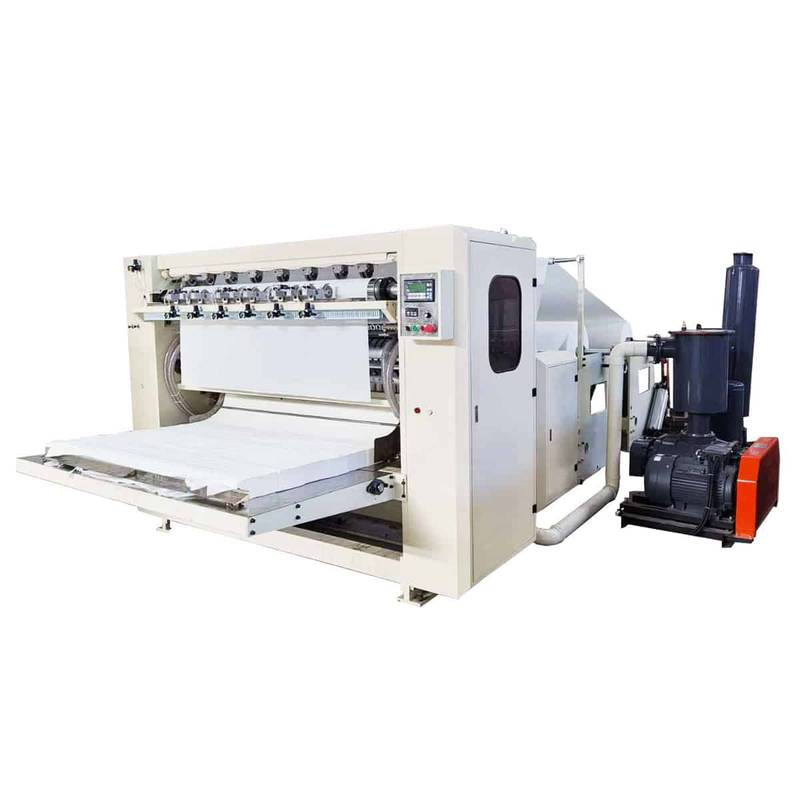

ft20a automatic facial tissue paper making machine

Facial Tissue Machine can process tissue jumbo roll into “V” type.
This machine adopts the vacuum adsorption,Helical blade shear and vacuum adsorption folding.

Additional information

Model	FT20A
Structure of machine	Wallboard
size of finished product(mm)	170-230mm
Machine type	folding
Raw material type	Paper Basic Weight: 14~16 gsm x 2ply Paper Material:100% pure paper
Size of raw material	width:400-2800 mm,diameter:1000-1200mm
Diameter of core	3inches

Product Details:

Function and Features:
1.Count automatically and output in order
2. Adopting screw turning knife to cut and vacuum absorption to fold.( Folding type: v type automatic folding)
3. Adopting step less adjusting speed to roll to fix different tension of raw paper.
4. PLC frequency controller easy to operate
5.This equipment can with embossing unit, the embossment is clear and nice.
6.Paper is conducted by spira cutting by section with convenient adjustment in cutting tool
7.Slitting width can be adjustable
8.Unwinding of jumbo roll is pushed an fed by flat belt, equipped with stepless speed regulator to adjust tension of unwinding 9.Stepless speed for unwinding and can adjust to high & low tension paper material.
Description of machine parameters:
1 Production speed:60-100m/min (1000-1200sheets/min)
2 Production open size(mm)190(L)x200 W (customized)
3 Production folded size(mm)95(L)x200 W(customized)
4 Power:7.5-15Kw (380V 50Hz)
Specification of raw material
1 Width of raw paper roll:400-2800mm.
2 Diameter of raw paper:1000mm-1200mm
3 Thickness of raw paper:14g/ m²-18g/ m²
4 Diameter of paper core:76.2mm
5 Applicable roll quantity: 2parent rolls
