PRODUCT

Product Details:

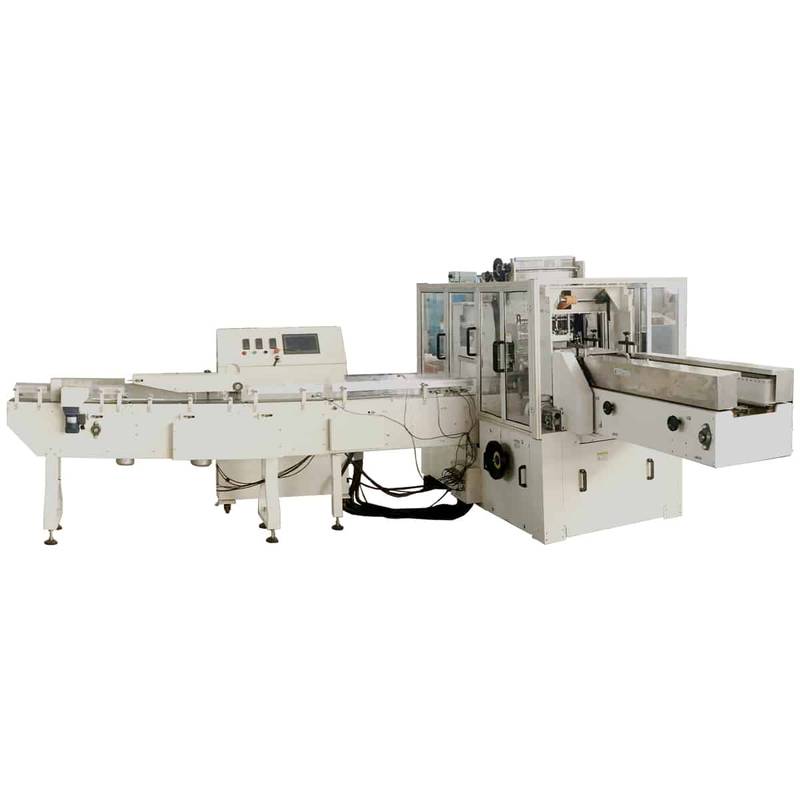

Application: This machine is mainly used for Facial Tissue or Napkin Paper Three Dimensional Packing.

1)Packing speed:50-80 bags/min

2)packing size:100-230*90-200*40-160 mm

3)Power:15kw 380v-50hz

4)overall size:3560*5885*1925 mm

5) machine weight:3000kgs

Main performance and structure features:

• 1. Adopt packing method by wrapping, hemming and sealing with compact structure and high product appeal.
• 2. Adopt the controlling system of step-less frequency conversion, touching screen and PLC, clear display and easy maintenance.
• 3. Adopt auto-putting conveyor, easy to be connected with automatic production line, saving laboring cost.
• 4. Stepless-speed regulation with double transducer, automatically adjusting packing film length.
• 5. High autoimmunization, high specialization, high efficiency and but less trouble.
• 6. Different sizes can be handled easily thanks to a fast and simple changeover facility.
