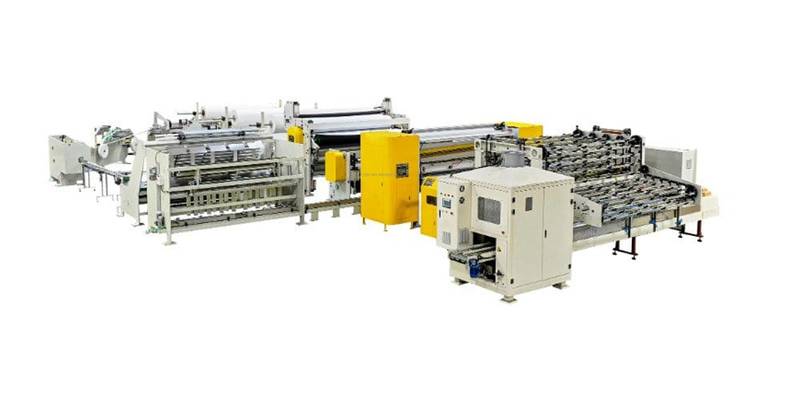

The production line including: Rewinding Machine （Color Glue Laminated Embossing Device） Paper Core tube Making Machine
Log Accumulator:A206 accumulator:Total of 206 pieces of paper were stored
High Speed Cutting Machine
Non Stop Iron Flat Packing Machine
| Model | CIL-XDNS-2800 |
|---|---|
| Structure of machine | Wallboard |
| size of finished product(mm) | Customized |
| Machine type | Rewinding,cutting,package |
| Raw material type | Tissue paper roll |
| Diameter of raw material | 1000-2000mm |
| Diameter of core | 3inches |
1) Stable production speed: 120 cuts/ min.
2) Adopt to independent servo motor drive and PLC control system.
3) High precision positioning,with length tolerance ±1mm.
4) Model clamping unit, reliable and easy to assemble.
5) Reliable and stable servo drive high precision trimming system.
6) Cutting diameter: 90-150mm, tolerance ±5m

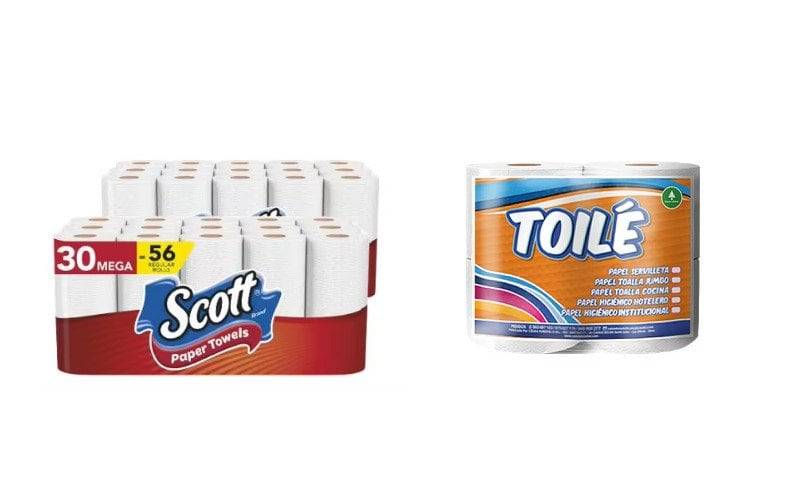

Kitchen towel paper roll package machine:
The rolls are coming by five channels conveyor; they are launched in the number of lanes according to packaging configuration needed, which is set by HMI, in the single layer or double layers into in-feed section, where they are transported and stacked by group of carbon bars mounted on trimming belts. Carbon bars convey the group of rolls on the elevator, which leads them into the area of folding. The foil positioning section brings the packaging film directly above the rolls by transport belts. The folding process is performed by universal side folders, as well bottom folder and counter folder. Side folding is done by innovative air supported mechanical folders. The overhead pack transport section continuously moves the pack through section of side folding and rotating bottom sealer and deliver pack to side sealing section. All motions and functions are fully controlled by the 27 independent servo motors.
Kitchen towel paper roll rewinding machine:
is to perforate and cut the raw paper into various sizes according to the requested. The finished product is neat, in good order and with equality tension. It has the feature of compact structure, easy and stable operation, less electricity consumption and covers a small area. The highest production speed is 200-350M/min.
It has HMI, Chinese-English switch; synchronous frequency conversion drive; integration of mechanics, electrics and photo. It is equipped with whole trouble information. It can detect and adjust every action of the rewinder automatically to keep the rewinder in optimal situation.For example:There is a web tension system in the line,It can control speed according to the tension of web so it can adapt different type of jumbo roll.So it is the best choice to produce top-grade bathroom tissue and kitchen towel for paper company.
