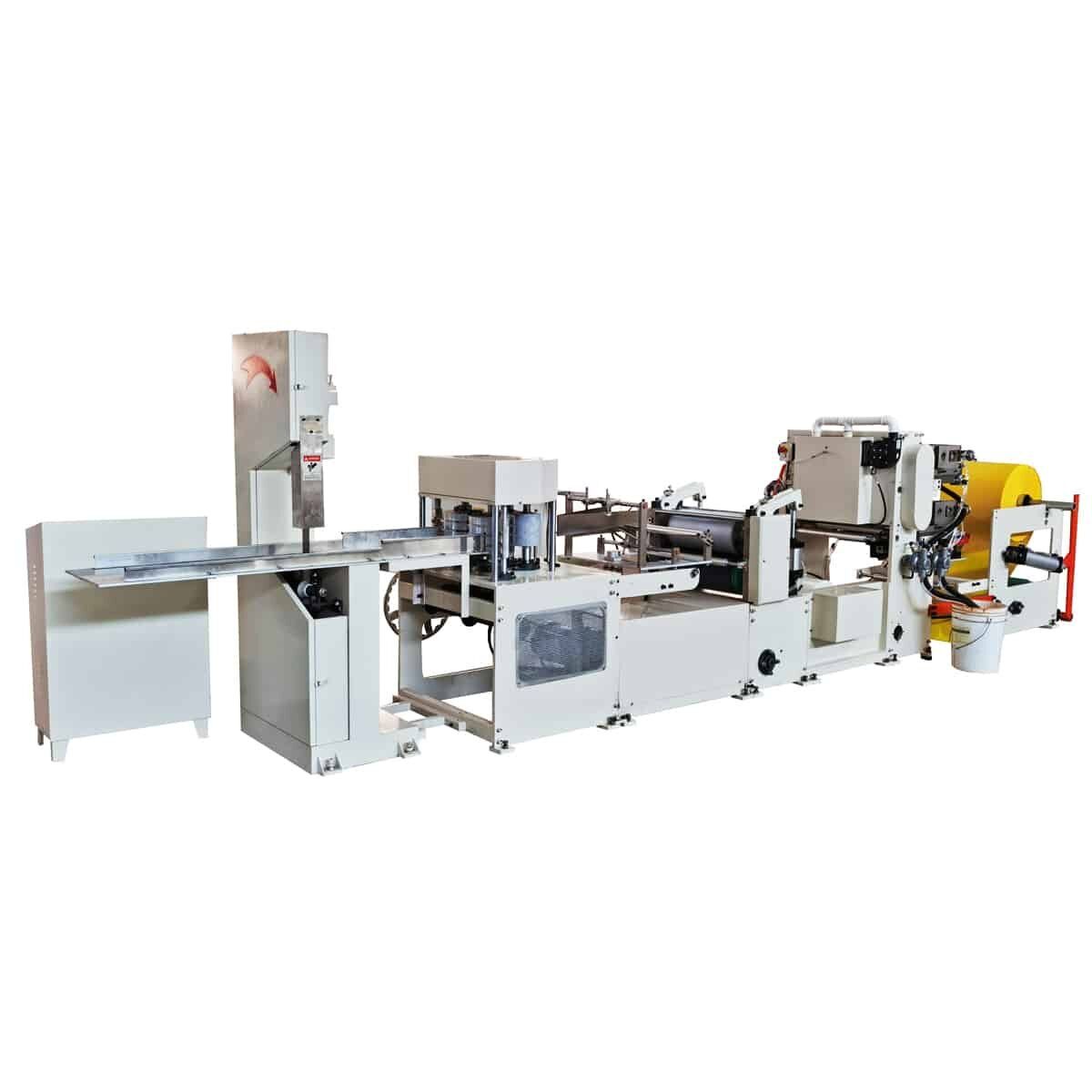

Disposable Medical Folding Dental Bibs Pad Cutting Making Printing Machine

Additional information

Model	NP7000C
Structure of machine	Wallboard
size of finished product(mm)	330（L）×450(W)
Machine type	folding sealing
Raw material type	Double layer toilet paper, plastic composite film
Size of raw material	4501000-1200mm (widthdiamter)
Diameter of core	3inches

Product Details:

This machine is ideal equipment to produce disposable medical dental pad. The main driving system adopt frequency conversion control, plastic film unreeling adopts auto tension system, raw material adopt infinitive speed control , embossing system adopt heating auxiliary shaping, equips with auto rectifier. Realize material lamination, embossing, folding till final product come put single machine produce, high degree of automatic, high yield, easy operation, save labors.

1. Width of tissue raw material:450mm diameter 1200mm gsm 16-20
2.Witdth of PE film material:440mm diameter 600mm gsm 11-13
3. Weight:about 1.5ton
4. Machine Power：4.5KW （380V 50HZ）
5. With steel to wool embossing roller
6. Embossing unit with heating function
7. Woking speed:90-120m/min 400-600sheets/min
8. With full auto web guaid
9. Overall size:6.5m X1.2m X1.6m
10. Auto web guaid keep in good line shape
11. Machine stop sensor unit when paper broken
12. Machine stop automatically when fault of unreeling 13.color flexible printing unit with water ink circulation system
