PRODUCT

The machine making the sheet paper wiper,which wipping and cleaning tasks that our industrial products are asked to tackle can range from preparing parts, cleaning before painting, enhancing maintenance or quality control processes, and picking up leaked oil or other lubricants. Our range includes solutions that cover all these needs.

Additional information

Model

FT20A-W

Structure of machine

Wallboard

size of finished product(mm)

Customized

Machine type

folding,cutting and packing

Raw material type

Nonwoven,Paper

Diameter of raw material

800-1000mm

Diameter of core

3inches

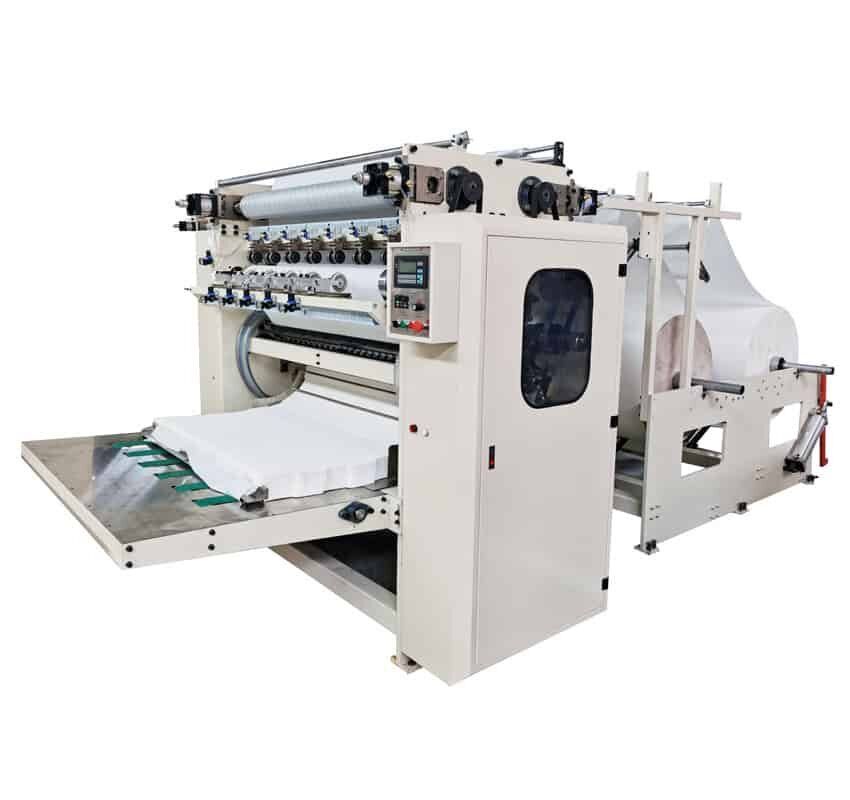

Sheet Industrial Paper Wiper Making Machine

sheet industrial paper wiper making machine 1

Function and Features:

  • Count automatically and output in order
  • Adopting screw turning knife to cut and vacuum absorption to fold.( Folding type: v type automatic folding)
  •  Adopting step less adjusting speed to roll to fix different tension of raw paper.
  • PLC frequency controller easy to operate
  • This equipment can with embossing unit, the embossment is clear and nice.
  • Paper is conducted by spira cutting by section with convenient adjustment in cutting tool
  • Slitting width can be adjustable
  • Unwinding of jumbo roll is pushed an fed by flat belt, equipped with stepless speed regulator to adjust tension of unwinding
  • Stepless speed for unwinding and can adjust to high & low tension paper material.

Paper Wiper Box Packaging Machine:

It adopts PLC control, photoelectricity supervision to coordinate with every parts. Automatic stop and

trouble display when machine running exceptional in order to solving troubles in time. This machine can

be used separately, and also can connect with facial tissue log saw cutting machine on line.

The Production speed:30-50box/minute,power:5kw 380v-50hz

Features:

  • Rejection automatically if no products, nonstandard height or lack of leaflet.
  • Stop automatically if incorrect position of products into carton.
  • Stop automatically if no cartons or out of leaflets continuous.
  • Easy to change to different products.
  • Protecting automatically for overloading.
  • Automatically displaying device for speed and finished products counting.
