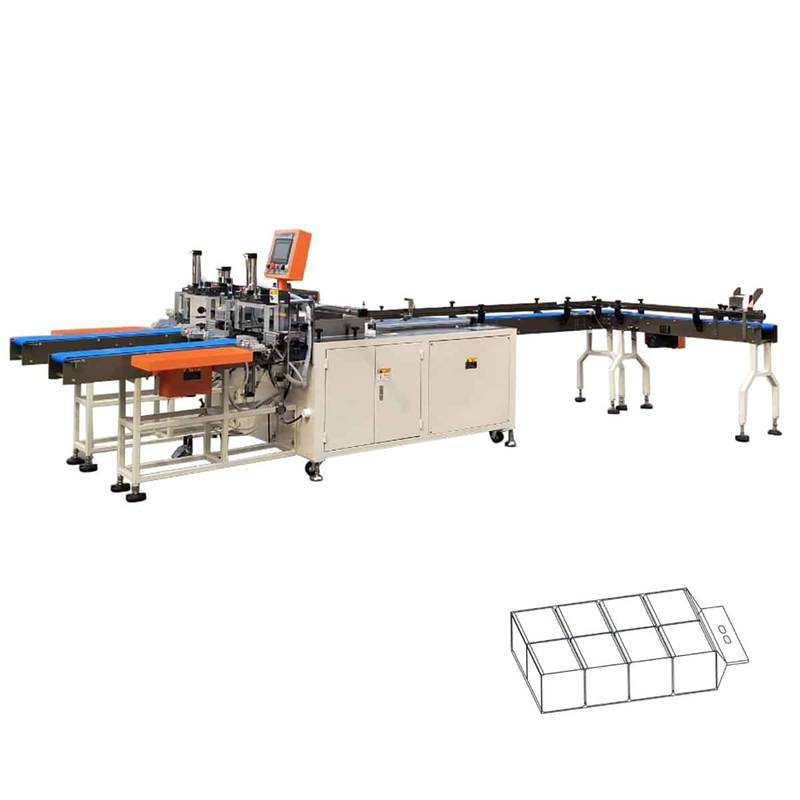

Semi-automatic soft tissue middle bag packing machine with automatic turnover connection and auto feeding control

Additional information

Model	FT25B
Structure of machine	Wallboard
size of finished product(mm)	3,4,5 pcs/bundling bag (1 lane) 6,8,10 pcs/bundling bag(2 lane)
Machine type	bag packing
Raw material type	CPP,PE,OPP/CPP,PT/PE Prefabricated bag
Size of raw material	Min.thickness of film :6dmm
Diameter of core	none

Technical performance characteristic：

1. Suitable for packing bundling facial tissue or napkin with 1 layer. Can pack 3,4,5 or 6,8,10 single facial in 1 bundling bag(2 lane). Can connect with full automatic single packing machine. Need 1 labor only to pack.
2. Multi function: automatic conveying, single head operation, auto feeding, auto sealing. Automatic discharging products when feeding conveyor is full of products.
3. Adopting the advanced PLC computer programming control, double frequency conversions control and the liquid crystal text to display parameters, it is very easy to set the machine. Moreover, the temperature controlling is more precise so that heating wires and tapes with thermo stability can be protected more efficiently.
4. Packing and sealing are pretty and tidy. The machine can be operated with full-automation and semi-automation. The machine with conveyer can be connected with facial tissue packing machine with conveyer. This allows the machine have high capacity and therefore to save labor and reduce production cost.
5.Easily change to different product size by adjusting hand wheels which adjust easily and simply.
6. Adopting double temperature controlled sealing and cutting system to make sure sealing quality is perfect and film bags are not broken.
7. Comprehensive design, rigid frame, and imported major component, allows our machine to work steadily, efficiently, and long lasting too
