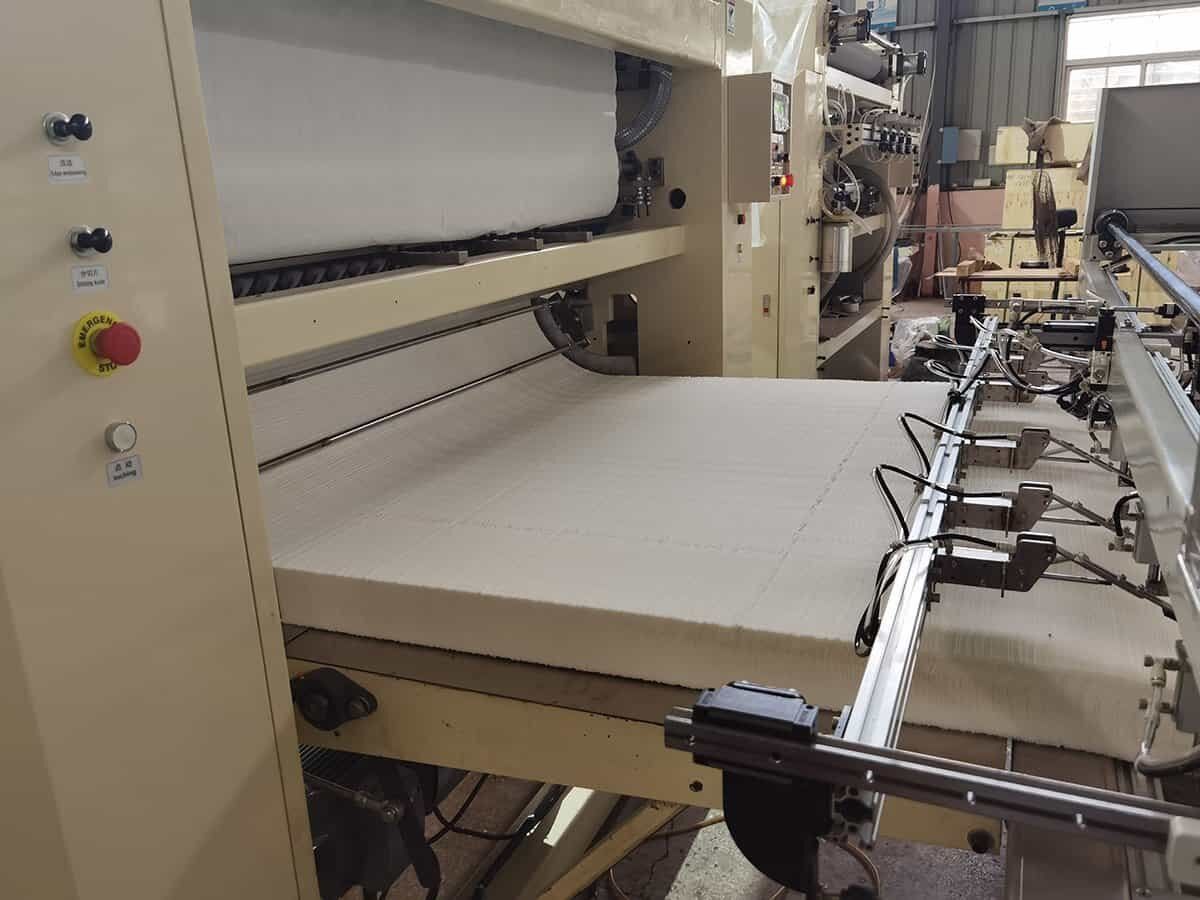

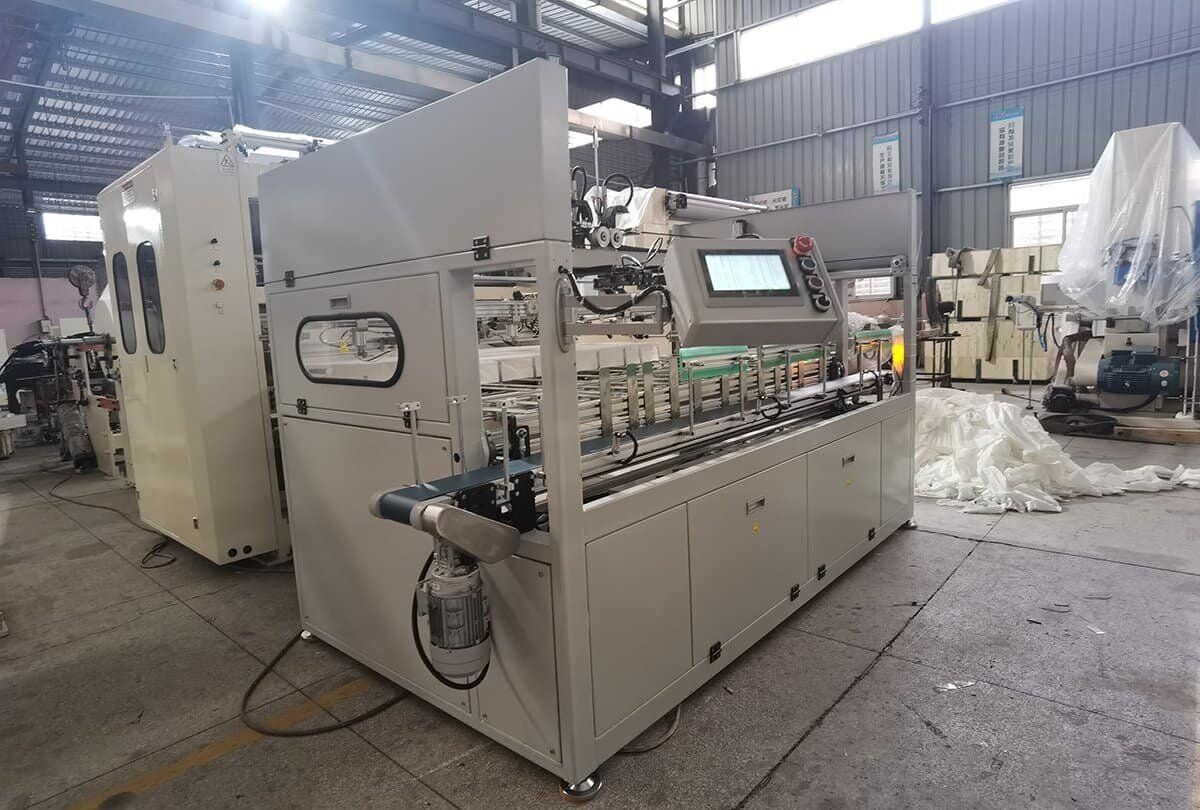

E-series sorting  machine is a new type of fully automatic equipment used for separating and setting the number of facial tissue. It connects the paper drawing machine and the tissue cutting machine to replace manual stable and efficient work. The contact surface between the fully automatic sorting machine and tissue paper is made of stainless steel material, which is clean and hygienic

E-series split pump has the characteristics of being more economical, simpler in structure, lower in energy consumption, and occupying a smaller area. The left and right paper separation adopts separate servo control, which is more suitable for the working condition of the folding machine where the paper stacking is not centered.

The power mainly adopts servo and cylinder, with the characteristics of simple operation (one key start, one key reset), easy maintenance, and stable action.

This machine adopts a special color code fixed-point and thickness mode compatible with sampling, with a color code retention period of 72 hours (there is no need to worry about the color code disappearing, the counting is also accurate), and the machine has a sampling error of plus or minus two. It can be controlled in conjunction with paper drawing machine and cutting machine to achieve full line automation.

2.Product classification

Classified by the head of paper drawing machine: 7lines E-7, 10 lines E-10, 14 lines E-14

3.Working condition:

Working temperature ：-20~+40℃。

Working pressure：0.6-0.7Mpa。

Working power: 3 phase 5 lines,AC380V/50Hz

4.Performance Table of E Series Fully Automatic sorting  Machine (Table 1)

Note: The stable number of strips is affected by the air pressure and flow rate of the gas source, the flatness of the paper output of the paper sorting machine, and whether there is a continuous knife effect on the paper output

Table 1 Performance Table of E Series Fully Automatic sorting Machine
