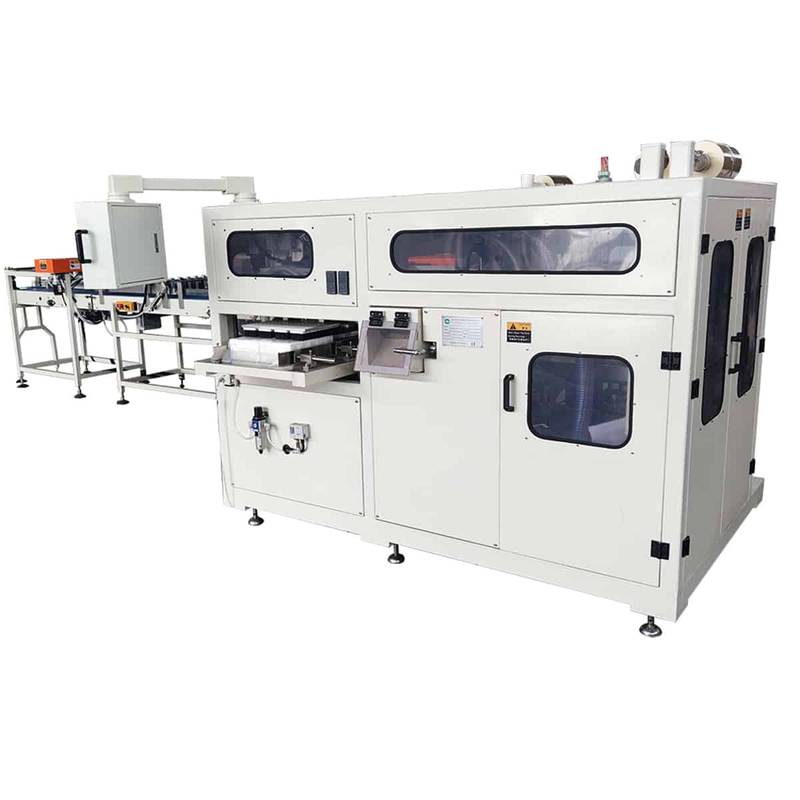

Full automatic soft tissue paper middle wrapper with full automatic 2 lanes feeding system and speed 18bags per minute

Additional information

Model	FT25B-auto
Structure of machine	Wallboard
size of finished product(mm)	L600W(150-420)H(80-105) mm 6、8、10 bag/bundling bag
Machine type	bag packing
Raw material type	Prefabricated bag with air-bleed hole
Size of raw material	Min.thickness of film :6dmm
Diameter of core	none

Technical performance characteristic：

1. Full automatic run. High speed.Suitable for packing bundling rolls(6,8,10 rolls in one bag).
2. Can be connected with log saw or single roll wrapping machine.
3. Servo system,PLC controlled.
4. Auto feeding, auto adjustment.Adopting high quality sensors.
5. Operated by color touch screen display.
6. Emergency stop/ pause function, safety alarm system, air and electric power protection system.
7. Adopting constant temperature sealing and cutting system.
