PRODUCT

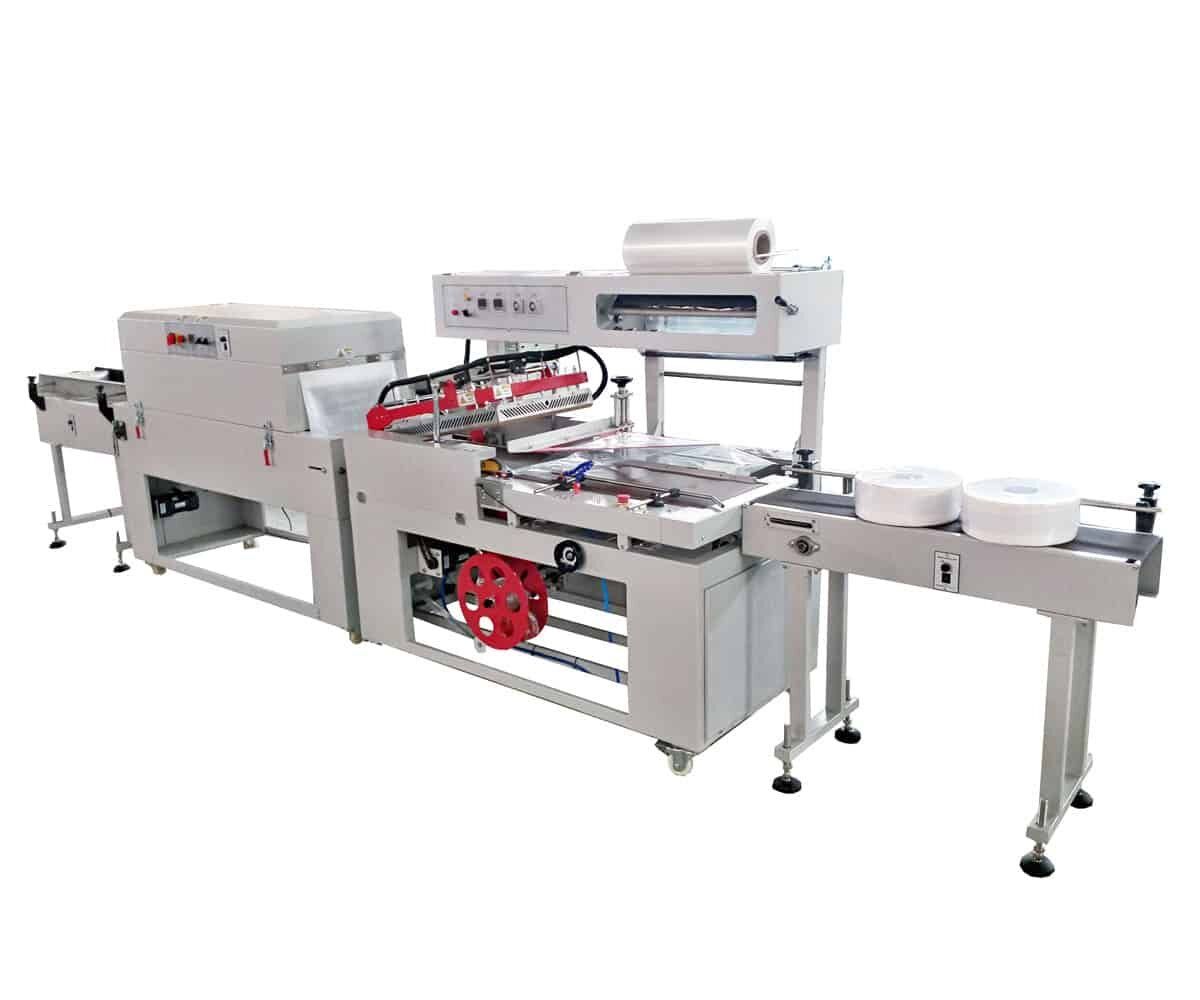

Industiral maxi roll paper wiper roll shrinking package machine

Industiral maxi roll paper wiper roll shrinking package machine - Image 2

The machine scope: are widely applied to the shrink package of foodstuff、beverage、pharmaceuticals、audiovisual products、hardware、cosmetics、books、toys、plastic、electronic components and so on. (work with shrink tunnel)

Additional information

Model	FT600
Structure of machine	Wallboard
size of finished product(mm)	Customized
Machine type	Shrinking&Sealing Max diameter:250mm

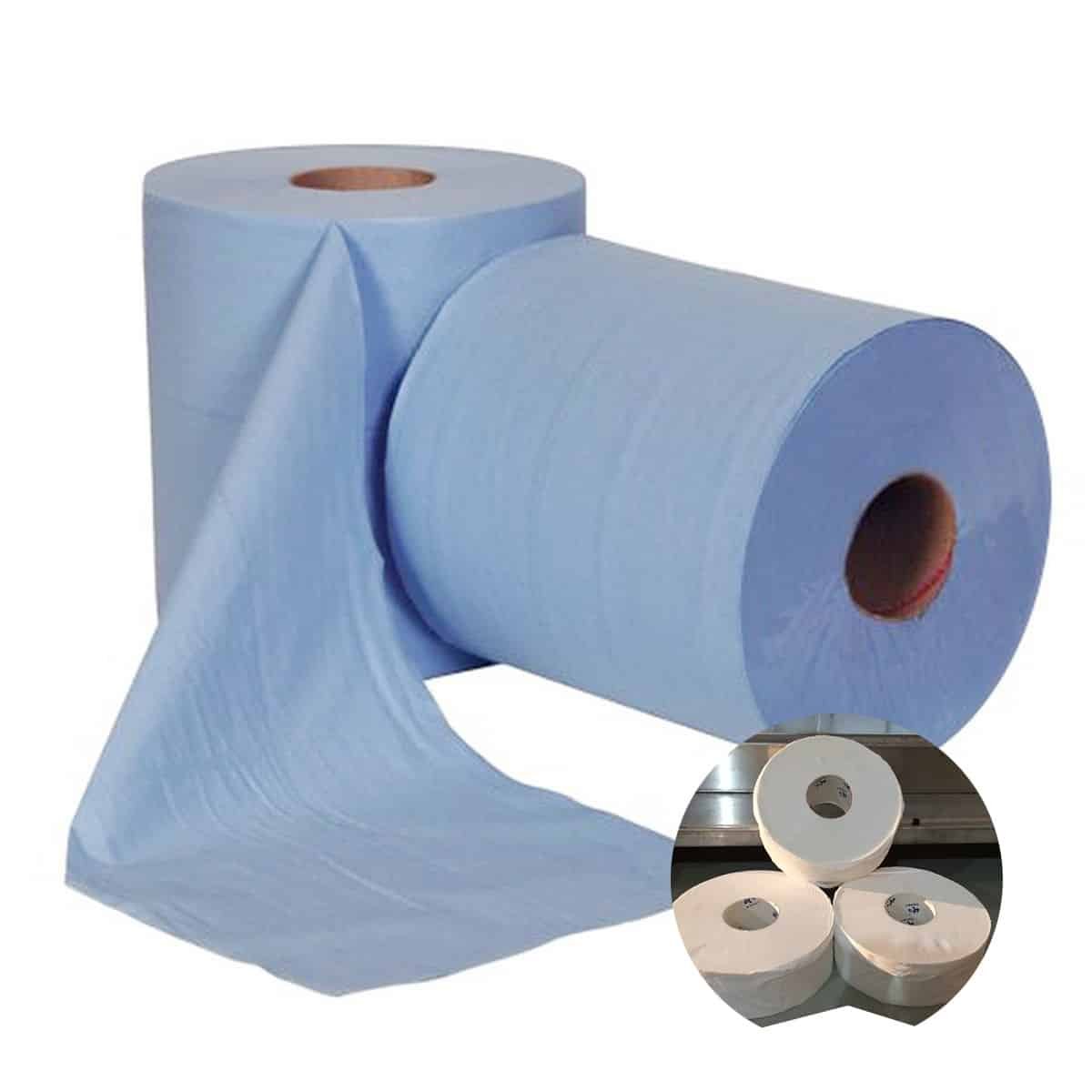

Raw material type	Paper Roll
Diameter of raw material	POF folded film
Diameter of core	600mm(w),20kgs

Industiral maxi roll paper wiper roll shrinking package machine
Features:

1. sealing portion Crosses vertical type driving, using the international advanced vertical knife heated side sealing knife, sealing line straight and strong, can guarantee seal tangent in the middle of the product, to achieve the perfect sealing effect.
2. Packing different size products, you only need to complete the hand wheel adjustment, increased reliability, easier to operate.
3. The feeding length controlled by electric eye detection and timer combination, precisely control the length of the film, the shrinkage effect is easier to control.
4. Automatic coiling waste, using a separate motor control, not too loose or too tight crack, easy waste removal.
5.Production Speed：20-35bags/minute
6.Packing size:W+H≤400mm L+H≤480mm
7.Seal cutting system:
Constant temperature heating system,
easy to replace the cutter,
sealing do not smoke no odor
