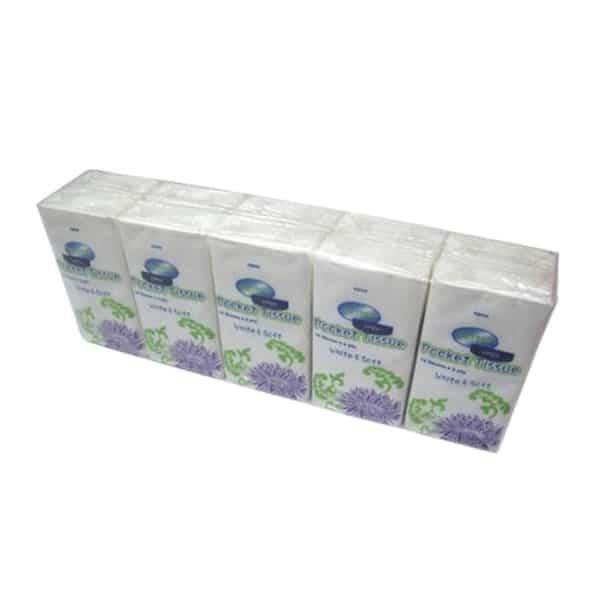

This machine can process middle pack for mini type and standard type multi bags pocket tissue paper
| Model | AS301 |
|---|---|
| Structure of machine | Wallboard |
| size of finished product(mm) | (150-330)L*(70-150)W*(20-84)H |
| Machine type | buddle packing |
| Type of raw material | PE OPP film |
| Size of raw material | Max Film Width(mm) ≤330 |
| Diameter of core | 40-50mm |

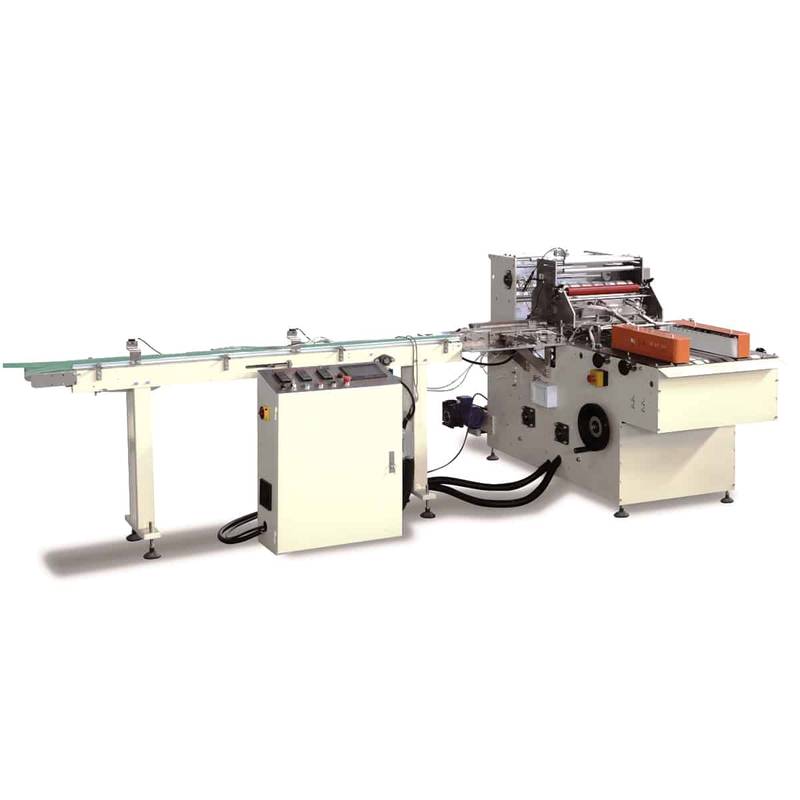

Suitable for packing standard-type, mini-type handkerchief and flat of the rules of flat rectangular objects of plastic film packing. The running of machine controlled by PLC named Mitsubishi, big window touch screen, The main frame adopt frequency adjustment system. The servo engine controls the film feeding to assure accuracy. Cam-type driving, compact structure, simple operation and easy maintenance. Opening part device has pneumatic and rolling type available for customers’ choose.
Main Technical Parameter:
