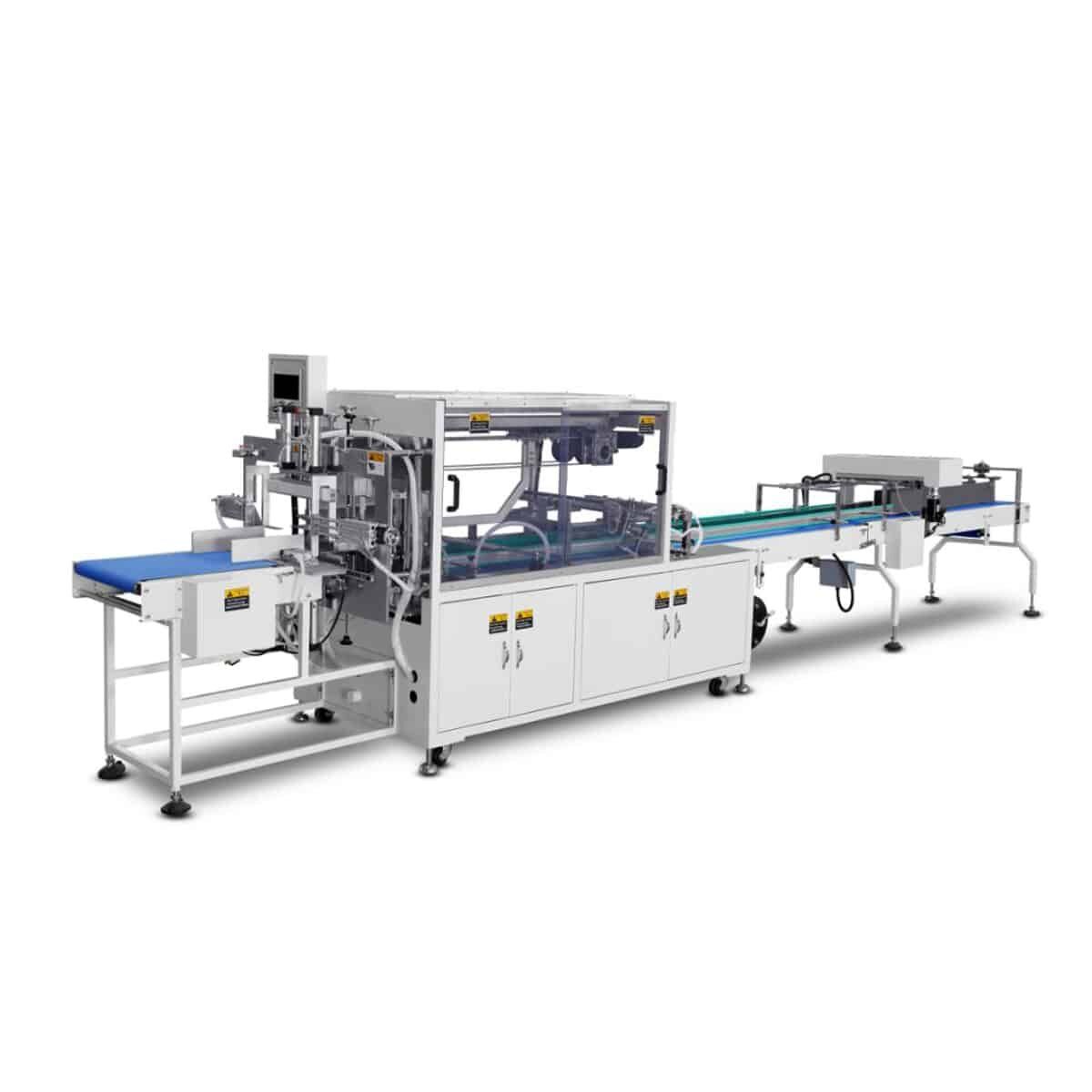

Machine is Suitable for packing bundling toile roll or kitchen towel paper roll, can pack 2，4，6 kitchen rolls or 6,12 toilet rolls
| Model | SP398-6 |
|---|---|
| Structure of machine | Normal |
| size of finished product(mm) | 2rolls,4rolls,6rollers |
| Machine type | packing |
| Raw material type | PE,OPP,CPP pre-ready bag |
| Size of raw material | customized |
| Diameter of core | none |
1. It Can connect with log saw, band saw or single roll wrapping machine to form an automatic production line.
2. Multi function: automatic feeding, automatic sealing, automatic countering.
3. Adopting the advanced PLC computer programming control, touch screen and employing the liquid crystal text to display parameters, it is with simple set and water cooling control. Moreover, its temperature controlling is more precise so that heating wires and tapes with thermo stability can be protected more efficient.
4. Packing and sealing are pretty and tidy.
5. Easily change to different product size by adjusting hand wheels which adjust easily and simply.
6. Comprehensive design, rigid frame, and imported major component, this allows our machine work steadily& efficiently, and therefore this makes machine have long life.
1. Packing single roll quantity:2-4-6 rolls/bag
2. Production speed:6-8bags/minute.
3. Power Supply:2.5KW 380V-50HZ
4. Single roll size(toilet roll for example):Diameter：Ø100-110mm,Height:200-300mm.
5. Bundling size:L(200-300)*W(200-340)*H（100-200)mm
6. Machine size(MM):L4500*W1000*H1500
