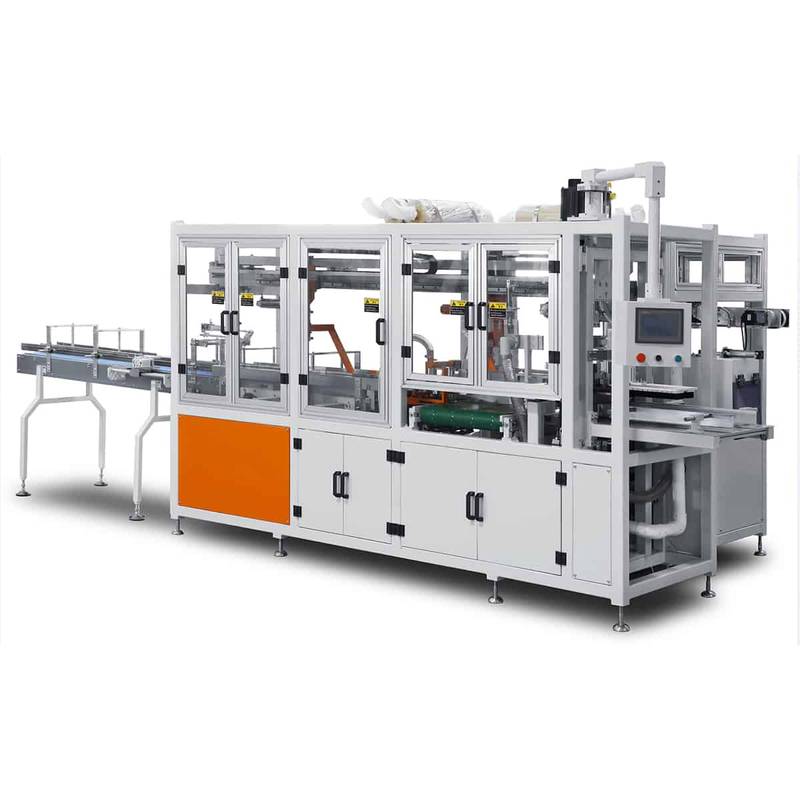

Full automatic run. High speed.Suitable for packing bundling rolls(6,8,10 rolls in one bag).
Can be connected with log saw or single roll wrapping machine.
| Model | SP398-1 |
|---|---|
| Structure of machine | Wallboard |
| size of finished product(mm) | L(270-600)*W(180-240)*H(90-120) mm 6、8、10 rolls/bundling bag |
| Machine type | bagging packing |
| Raw material type | Prefabricated bag with air-bleed hole |
| Size of raw material | PE, thickness:：≥5S |
| Diameter of core | none |
Characteristics:
1) Adopt servo control , automatic homing, automatic adjustment function, product counting, feed bagging, open bagging, feeding bag,sealing and cutting automatic process.
2) Adopt high-end sensor, photoelectric switch detection, automatic fault display, easy to track maintenance.
3) PLC programming control is used for electronic control, and man-machine interface operation of large-screen, high-definition and full-color touch screen is adopted.
4)Emergency stop/ pause function, safety alarm system, air and electric power protection system.
5) Adopt constant temperature cold cutting for sealing device
Technical parameter:
1)Capacity:10-23undling bag/minute
2)Power:21kw 380v 50hz,3phase 4 wires
3)Feeding mode:Full automatic 2 lanes feeding system
4)Suitable for packing:Bundling toilet rolls with core and without core
5)Single roll size:Ø 90-120mm
6)Bundling bag store:40mm Two bag storage
7）Bundling bag storing quantity：≤500 pcs
8）Machine weight：3000kgs
9)Machine size:L5300*W1800*H1850 mm
