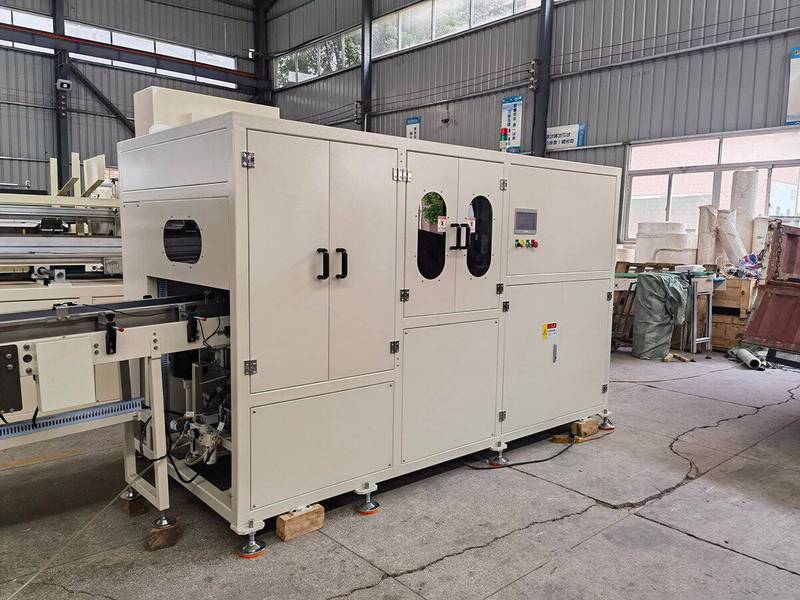

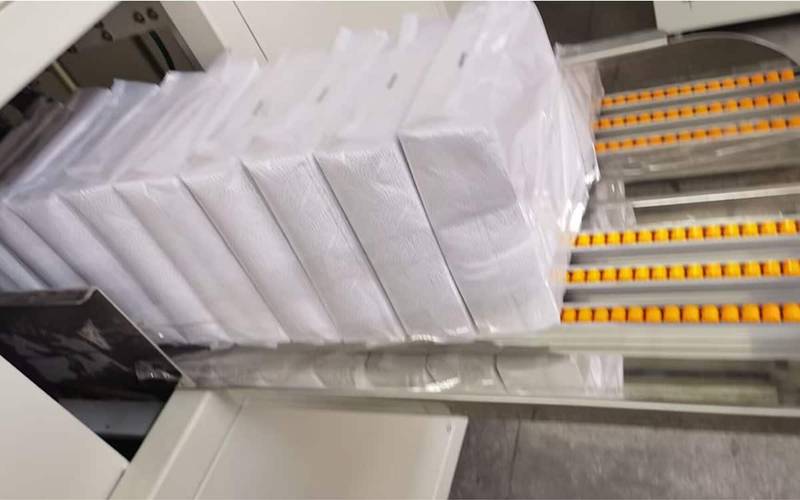

This machine use plastic bag film to pack N ,V or M folding hand towel paper.
| Model | CIL-AS281 |
|---|---|
| Structure of machine | Wallboard |
| size of finished product(mm) | Customized |
| Machine type | Folding, packing |
| Raw material type | CPP/PE/PT |
| Capacity | 20-30bag/minute |
| Worker need | without |
Function and characteristic:
1. Touch screen man-machine interface, convenient and quick parameter setting,
2. Automatic fault diagnosis function, fault display at a glance.
3. From bagging to seal forming, the whole process are protected by side guard,
effectively avoid the phenomenon of broken bags
4. The constant temperature of the hot plate control by imported temperature controller
ensure that the seal is more reliable and no false seal
5. Four directions for dynamic supporting mechanism,
and effectively improve the stability and open the bag bag
Technical parameter:
1) Packaging Specifications(MAX):20-30 bags per min
2) Packing size:
L150~220mm*W120-200mm*H80-100mm
3) Packing film: CPP/PE/PT pre-made plastic bags
4) Roll film width: max 180mm
Roll film diameter:max 600mm
Roll film core diameter:75mm
5)Machine size(L*W*H):4.7×1.1×1.9m
6)Total Power Supply: 3.0kw AC220V ,50HZ
7)Weight:1000kg
