The production line including: Rewinding Machine （Color Glue Laminated Embossing Device for option）
High Speed Cutting Machine
Non Stop Shrinking Packing Machine with lable filling
| Model | CIL-XDNS-900 |
|---|---|
| Structure of machine | Wallboard |
| size of finished product(mm) | Customized |
| Machine type | Rewinding,cutting,package |
| Raw material type | Tissue paper roll |
| Diameter of raw material | 1000-1200mm |
| Diameter of core | 3inches |

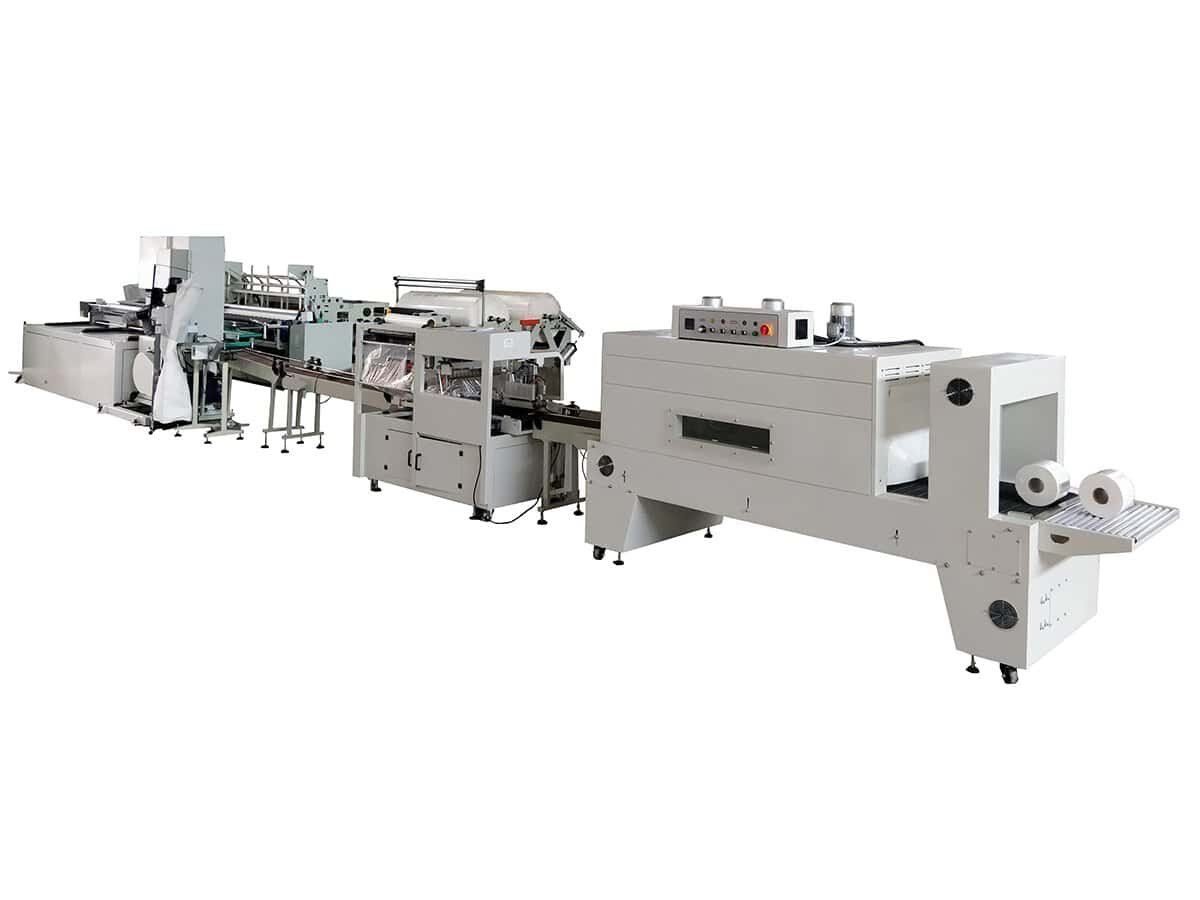

This production line consists of Wall Type Automatic Rewinding Machine, Band saw cutting machine and automatic shrink packing machine From jumbo roll paper into the finished rollers, the whole line work smoothly and run stable, saving the labor cost and reducing the labor strength. It’s best choice for the producing maxi roll paper products. Automatic maxi roll paper rewinding machine
Functions and Features
1. This machine is for making toilet paper rolls, the whole structure is wall-type, which make machine running stable at high speed, and noiseless.
2. Perforation distance is adjustable to meet different distance needs.
3. Automatic core feeding system, automatic pushing the log after rewinding, then rewinding the new log again.
4. Automatic edge-trimming, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost.
5. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.
6. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.
7. Two wall type back stands, pneumatic lifting system, with wide driving flat belts; each jumbo roll can be adjusted independently.
8. Adopt jogging switches for wearing the paper, easy and safe to operate.
Automatic maxi roll paper band saw cutting machine
Functions and Features
1. This machine is for making toilet paper rolls, the whole structure is wall-type, which make machine running stable at high speed, and noiseless.
2. Perforation distance is adjustable to meet different distance needs.
3. Automatic core feeding system, automatic pushing the log after rewinding, then rewinding the new log again.
4. Automatic edge-trimming, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost.
5. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.
6. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.
7. Two wall type back stands, pneumatic lifting system, with wide driving flat belts; each jumbo roll can be adjusted independently.
8. Adopt jogging switches for wearing the paper, easy and safe to operate.
Automatic maxi roll paper shrink packing machine
Automatic cutting sealing and temperature shrink machine is using shrink film package the product out, after heating, the shrink film will shrink the wrap coiler in a package. In order to fully display the item, with protection and increase the beauty and sense value.
