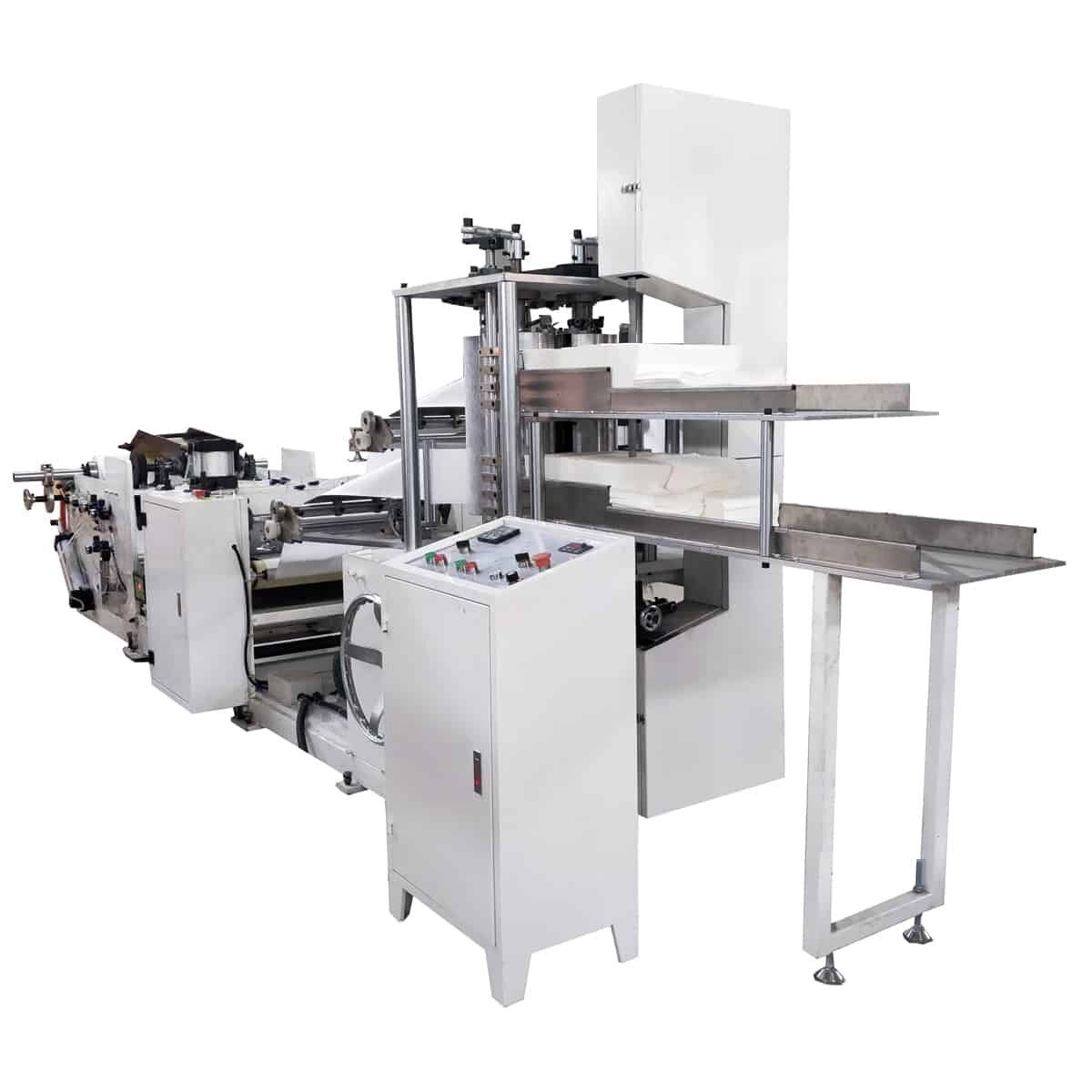

The machine start from raw material feeding , embossing,folding and cutting. The come out product is two layers ,four lines. Fast speed and high production.
This machine can be the special equipment for processing High-Grade Napkins.

Additional information

Model

NP7000K

Structure of machine

Wallboard

size of finished product(mm)

200-400(L)×200-400(W)

Machine type

converting

Raw material type

17-22g jumbo roll paper

Size of raw material

diameter:1000-1200mm width size:400-800mm

Diameter of core

3inches

Product Details:

The embossment of this machine is conducted by electric-heating to stable temperature from steel roller to fiber roller, also other material of embossment roller can be adopted as per customer’s    request. Bearing, electric components and synchronous belt are domestic famous brands

Equipment description:

  • 1. Production speed:1000-1400sheet/minutes
  • 2.Pneumatic jumbo roll stand lifter
  • 3. Vertical slitting unit
  • 4. With 1/4 or 1/2 folding plate
  • 5. Automatic counting system
  • 6. Steel embossing roller against wool roller
  • 7. Band saw slitting
  • 8. Knife sharpen rock unit
  • 9. Individual electrical cabinet
  • 10. Power:5.5/7.7kw 380V-50hz frequency-converting
  • 11. Machine stop sensor unit when paper broken
  • 12. Machine stop automatically when fault of unreeling
  • 13.color flexible printing unit with water ink circulation system
