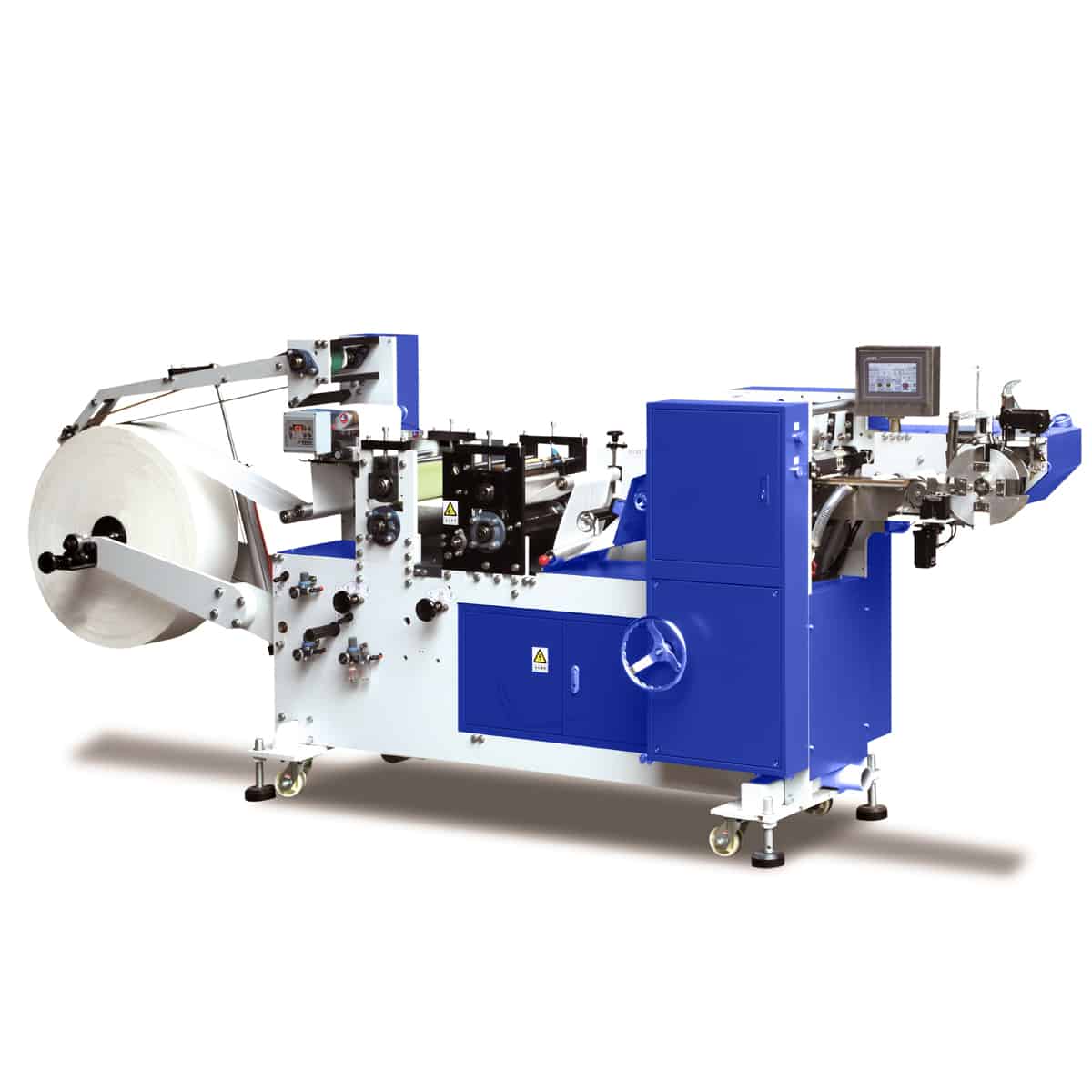

mft 21d pocket tissue folding machine with seperator

This machine can process from embossing, cutting and automatic folding into small volume, and to be easy carryon handerchief paper,the seperator easy connect with full auto packing machine

Additional information

Model	MFT21D
Structure of machine	Wallboard
size of finished product(mm)	7552mm/10552mm(unfolding size:210*210mm)/customized
Machine type	folding
Type of raw material	14-17g jumbo roll paper
Diameter of raw material	diameter:1000-1200mm,width size:180-210mm
Diameter of core	3inches

Product Details:

MFT-21B Mini type facial tissue machine adopts vacuum adsorb and high-speed to fold the paper. Adopting step-less adjusting speed, and it is running smoothly. It is special equipment for 4 folding facial tissue machine. This machine composed of raw paper stand, embossing unit, lengthways folding unit , cutting and transversal folding unit, It runs a whole set of rolling to fix difference tension of raw paper, embossed, length ways folding, pushing the paper, cutting the paper, transversal folding paper and finished products transfer.

Production speed: 700-900sheet/minutes
Pneumatic unreeling and paper loading integrated device
With color printing system (1-4colors option, auto ink-jet)
7-7.7kw (380V-50HZ according to request)
Embossing design on raw paper with clear embossing shape.
Controlled with rolling tension to fit production with different tension of raw paper.
Mill edge infolding, the appearance of product is elegant.
Adopting screw turning knife to cut for easy adjustment
Adopting vacuum folding format.
