PRODUCT

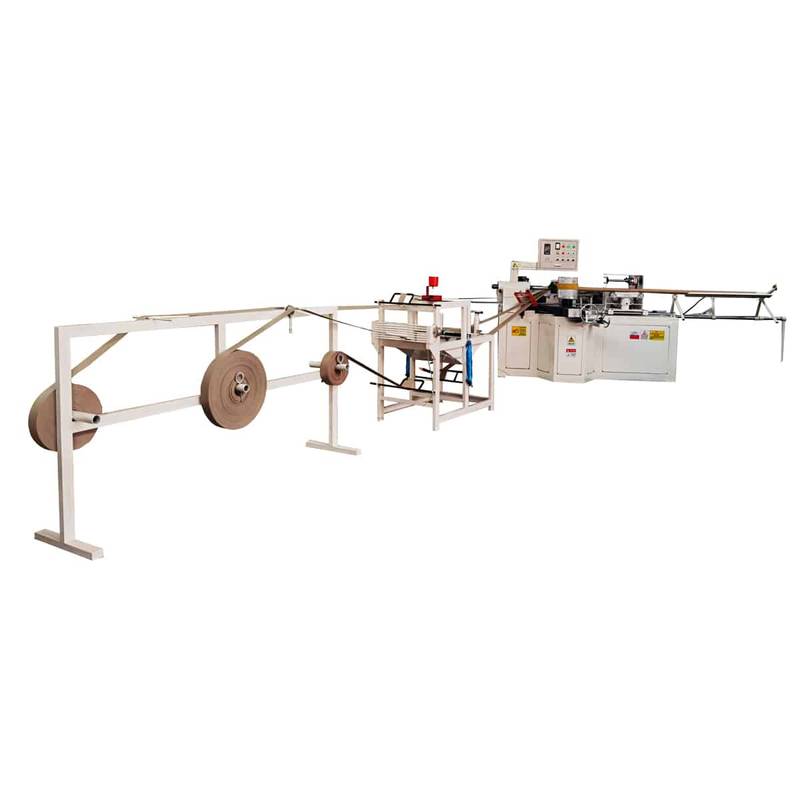

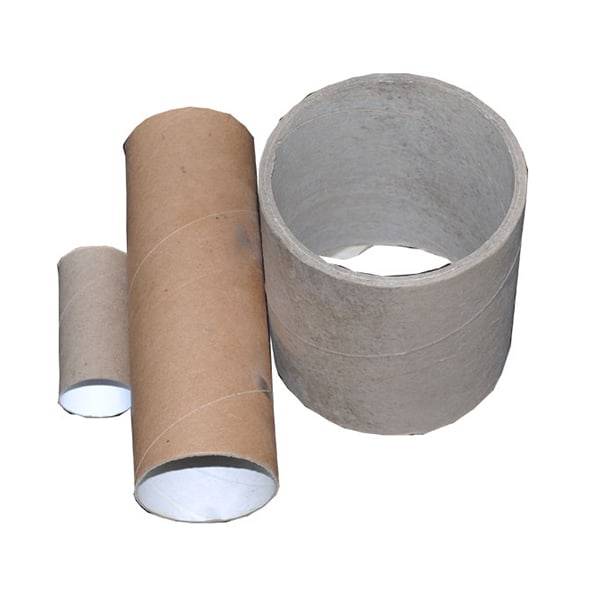

Roll core machine is for making the paper core inside the toilet paper roll.

machine.

Additional information

Model	RC-A
Structure of machine	Wallboard
size of finished product(mm)	roll core diameter 30-100mm
Machine type	winding and cutting
Raw material type	50-70mm width size kraft paper,150-400gsm paper
Diameter of raw material	800-1000mm
Diameter of core	3inches

The machine consists of three parts: raw material stand, glue unit, rewinding and cutting unit. It can make

different thickness and different diameter paper core by changing the mould. This

machine easy to operate, running stable, can work with toilet paper rewinding

Functions and features:

1. Inverter control to ensure the accuracy of the length of paper tube
2. Automated online on plastic, paper tube and cut off
3. Product diameter and length can be customized according to customer needs
4. Products are widely used in toilet paper. Plastic and textile industry
5. The machine has reasonable design. operation simple and convenient maintenance
