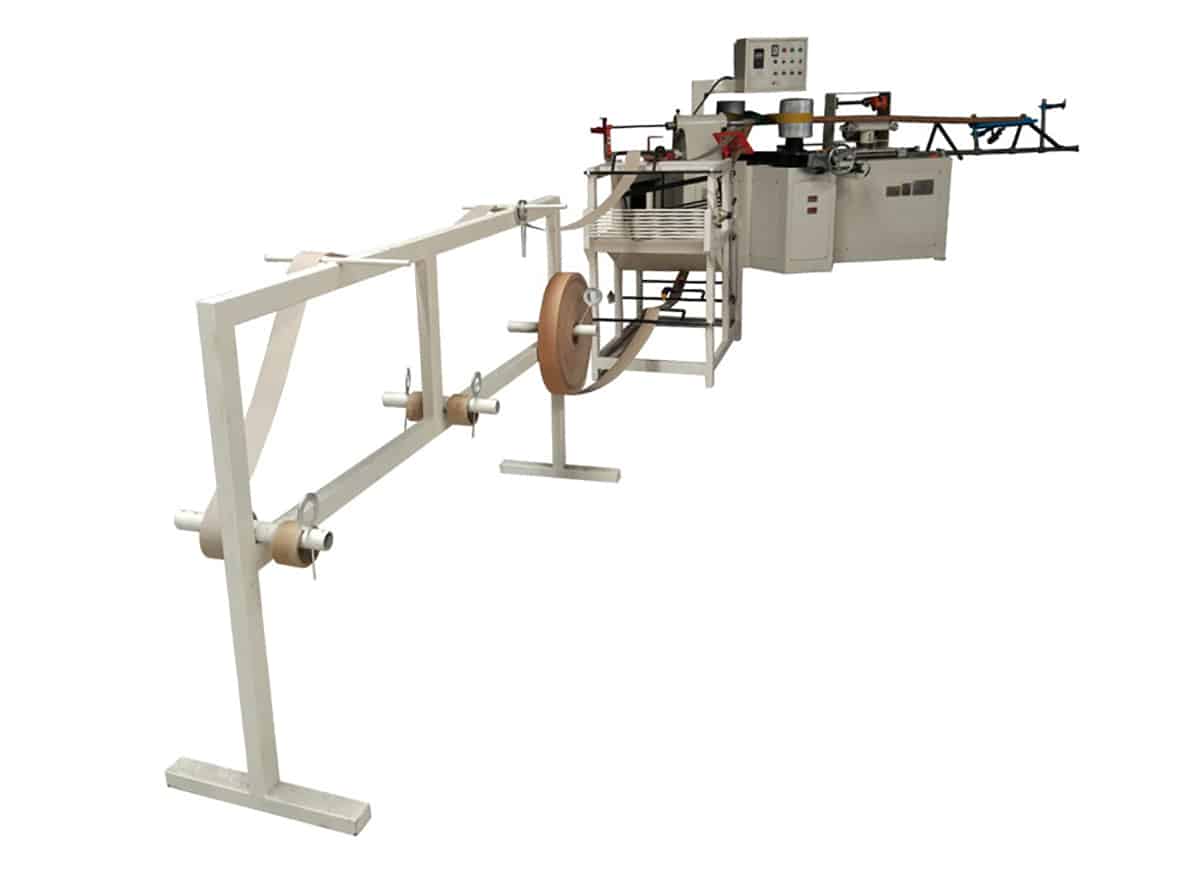

RC-A1 kraft paper tube making machine - Image 2

Roll core machine is for making the paper core inside the toilet paper roll.It consists of three parts: raw material stand, glue unit, rewinding and cutting unit.It can make different thickness and different diameter paper core by changing the model.This machine easy to operate, running stable, can work with toilet tissue paper rewinding machine

Additional information

Model	RC-A1
Structure of machine	Wallboard
size of finished product(mm)	roll core diameter 30-76mm
Machine type	winding and cutting
Raw material type	50-70mm width size kraft paper,150-400gsm paper
Diameter of raw material	800-1000mm
Diameter of core	3inches

Function & features:

Frequency conversion timing, high precision of pipe.
Automatically withdraw knife or insert knife to cut pipe without stopping machine.
Make other size of core (diameter and length) is very easy to change the spare parts.
Not hot and dry during the forming of product, the consumption of equipment is less.
The composed parts are of high rigidity, equipment is stable without shake when rolling core with high speed.

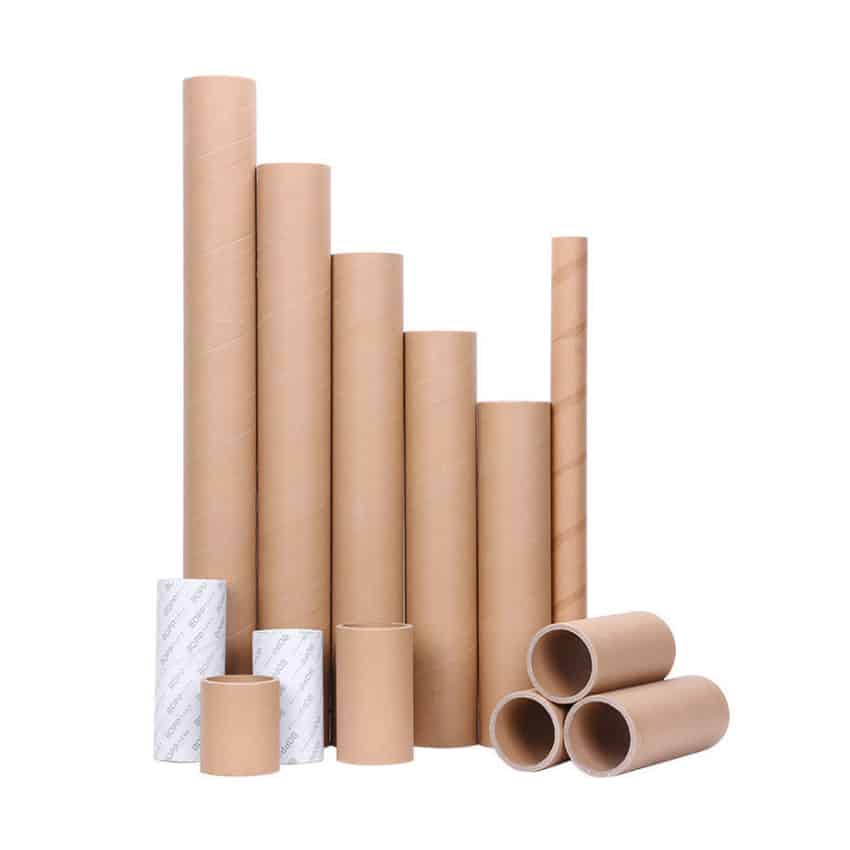

The finished pipes are used in the toilet paper ,plastic firm and textile.

Technology Parameter:

Production Speed: 15~20 m/min
Roll Core diameter: 30-100mm (2-10layers)
Installed power: 11.5Kw (380V 50Hz)
Overall Size of Equipment (L×W×H m):3050×850×1650mm
Weight of Equipment: 1600kg
*There are two kind of core bar, pointed by customers.
