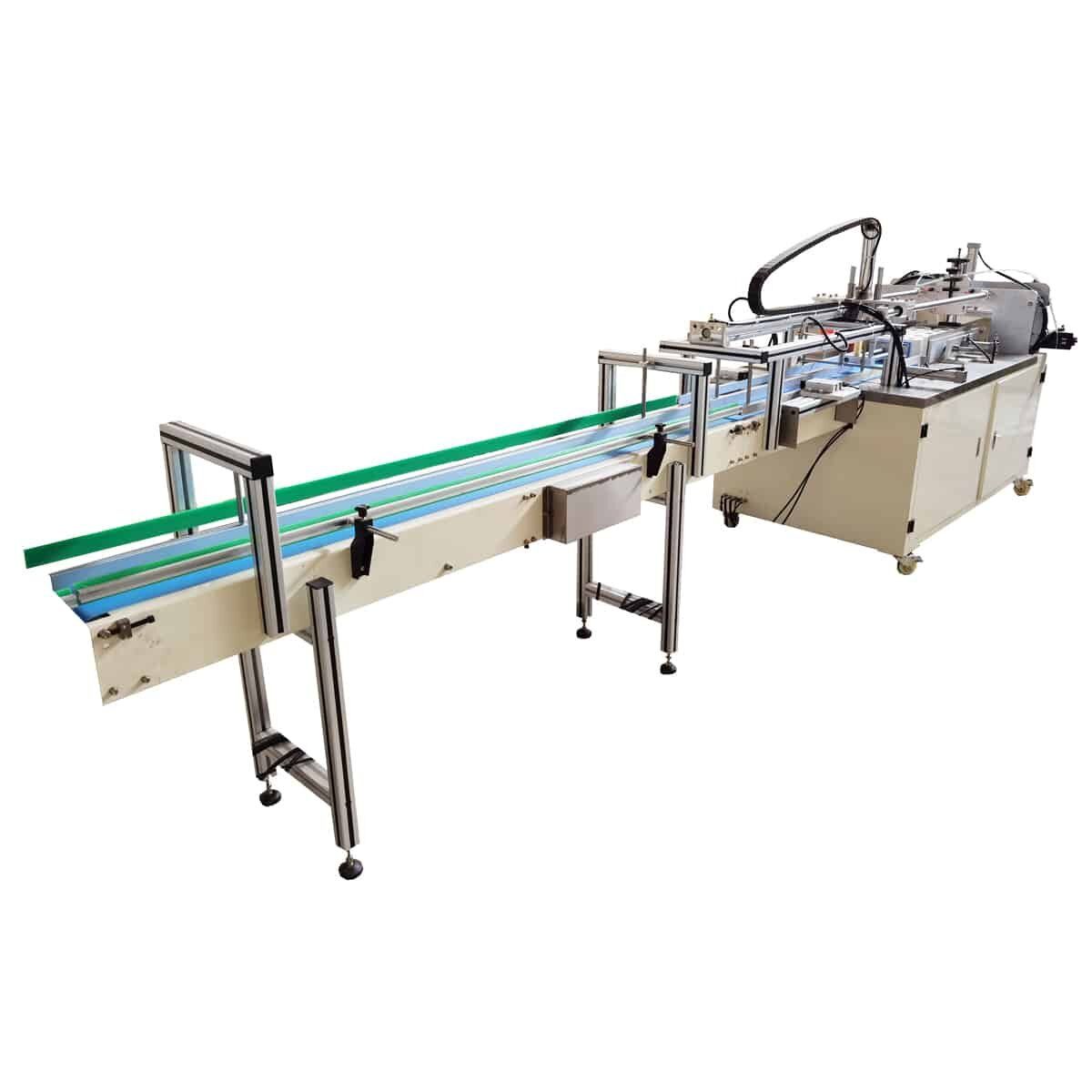

PRODUCT

This machine work with toilet paper rewinding machine, it is customized, can special made to meet different market requirements.

Additional information

Model

SP398-3

Structure of machine

Normal

size of finished product(mm)

1 row * (3-6) ranks *2 layer

Machine type

bagging packing

Raw material type

PE,OPP Prefabricated bag

Size of raw material

thickness:above 8dmm

Diameter of core

none

The machine is easy to operate:

  • Insert the prefabricated bag into output hole, press the jog switch, it will automatically put rolls into bag, meanwhile cutting and sealing.
  • Parameter:
  • 1)Production speed: 8-12bags/minute
  • 2)Arrangement mode:1 row * (3-6) ranks *2 layer
  • 3)Specification of one roll :Diameter:90mm ,Height:90mm
  • 4)Feed control: automatic feeding
  • 5)Bagging method:Manual
  • 6)Sealing quality:no disengage, no melting failure
  • 7)Power:2.2kw 380v-50hz
