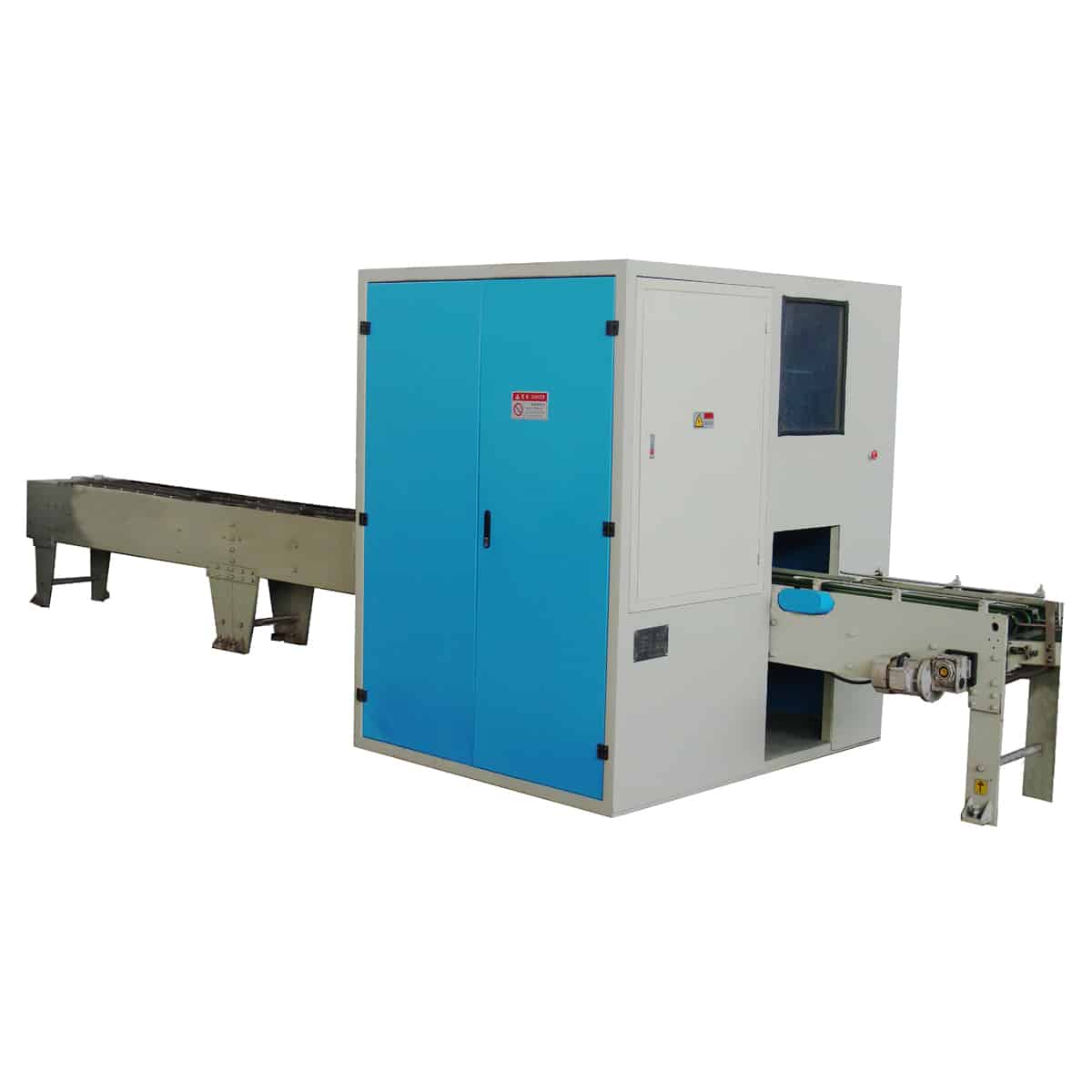

sp 280 kitchen towel paper roll cutting log saw

Automatic toilet roll and kitchen towel paper Log Saw Cutting Machine. Double servo drive paper cutting without push plate synchronous belt feeding

Additional information

Model	SP280
Structure of machine	Wallboard
size of finished product(mm)	90-135mm(diameter),≦300mm length
Machine type	cutting
Raw material type	log paper
Size of raw material	1200-2850mm length,90-135mm diameter
Diameter of core	40-55mm

Product Details:

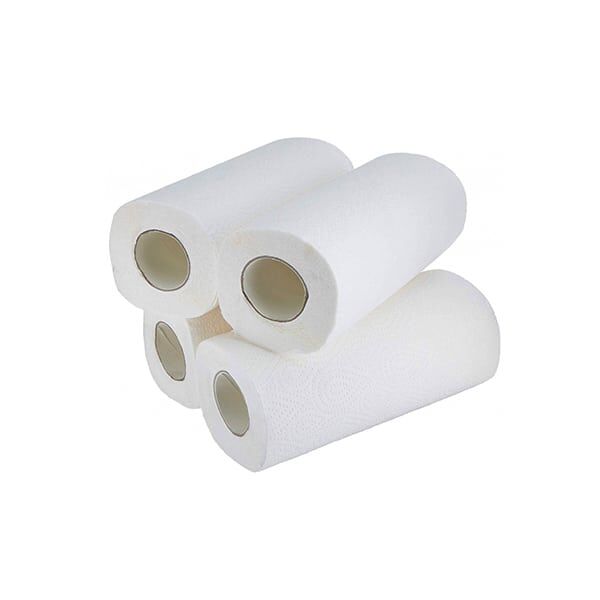

Double Channel Log Saw Machine is used for cutting the toilet paper roller and kitchen towel paper roller, it’s with high automation and efficient. Adopts advanced servo driving system, frequency conversion speed regulating, PLC control and touching screen operation.

Technical parameter:

1.Production speed: 160-200rollers/minute
2.paper log length:≦2850mm(it can be made according to customer request)
3. Cutting blade:φ600*4.7mm
4.Overall size:6500*2500*2000mm
5.Power:13kw 380V 50Hz
6.Parameter setting:Human Machine Interface
7.Conveying mode:Feeding by push plate feeding, synchronous belt conveying at the cutter, safe and reliable, absolutely no collision damage between cutter and push plate, high cutting dimension accuracy
