PRODUCT

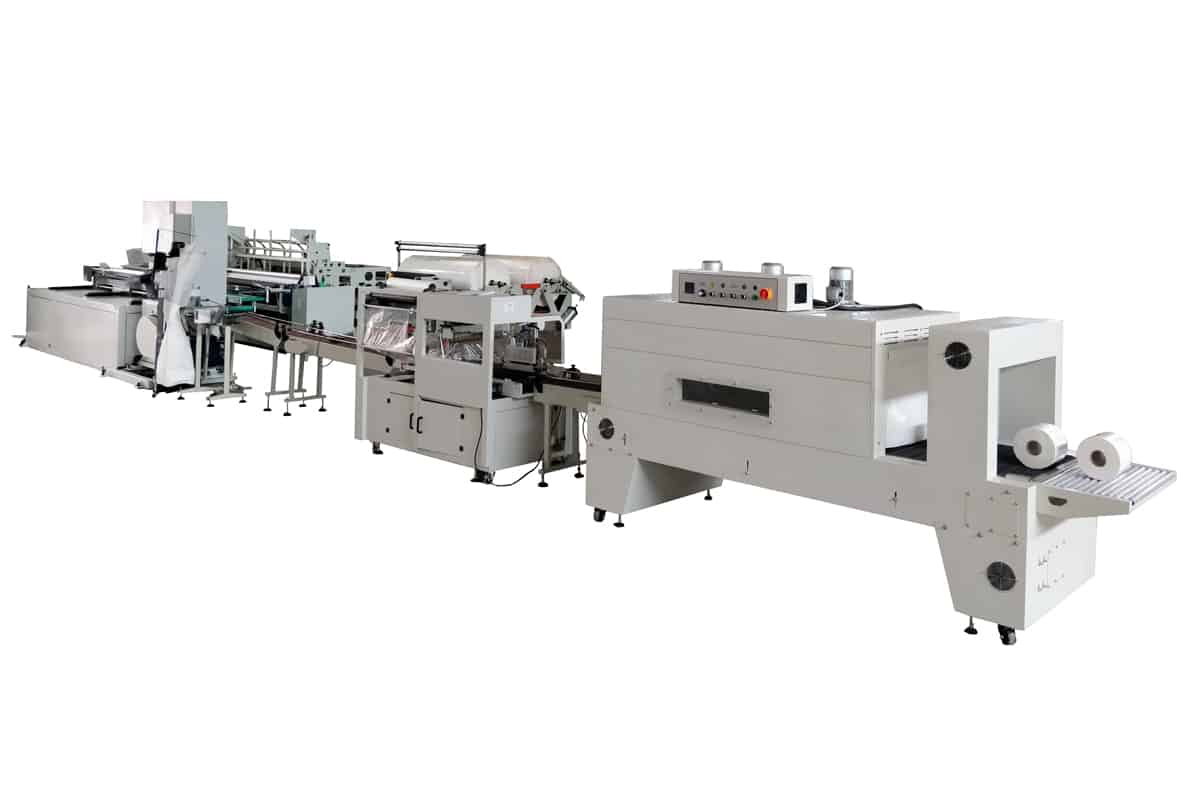

This production line consists of Fully Automatic Rewinding Machine, automatic band saw cutting machine and non woven/kitchen towel roll individual packing machine. From the jumbo roll into the finished rolls, the whole line work smoothly and run stable, saving the labor cost and reducing the labor strength. It’s best choice for the producing hygienic paper products.

Non woven/kitchen towel paper roll Making Machine:

This machine is used for making roll ( with additional lamination unit). Adopts international advanced PLC program controlling technique.
1.Production speed:150-240m/min
2.Finish diameter:100-120mm
Finish width size:270mm
3.Raw paper roll diameter:850-1200mm
4.Raw paper roll width:1800mm
5. Raw paper:90-140g/m2
6. Jumbo roll core dia. :76.2mm
7.The perforation distance:330mm
8.Machine power:8.5kw(380v50hz 3phase)
9.Machine size:5.3*2.65*2.05m(L*W*H)
10.Machine weight:5.5tons
11.With full auto paper core release
12. With full auto perforation unit
13.With two jumbo roll stand full auto lading
14. Wallboard frame type more stable more fast speed

full auto band saw cutting machine:

This band saw is good for new paper factory to cut toilet paper roll and kitchen towel. 1.Cutting speed:80-100cuts/min2.Cutting log channel: single
3.Cutting blade: band saw blade
4.Cutting blade size:3850*40*0.6mm
5.Log length: 2850mm
6.Tolerance:+/-1.5mm
7.Cutting length:300mm(max)
8.Cutting diameter:70-150mm
9.power: 5kw 3phase 4line 380v-50hz
10.Machine weight:1.1tons

full auto individual roll shrinking machine with paper lable filling machine:

1. Packing speed:15-30bag/minute
2. Packing size: 21*25cm
3. Power:1.5kw 380v-50hz
