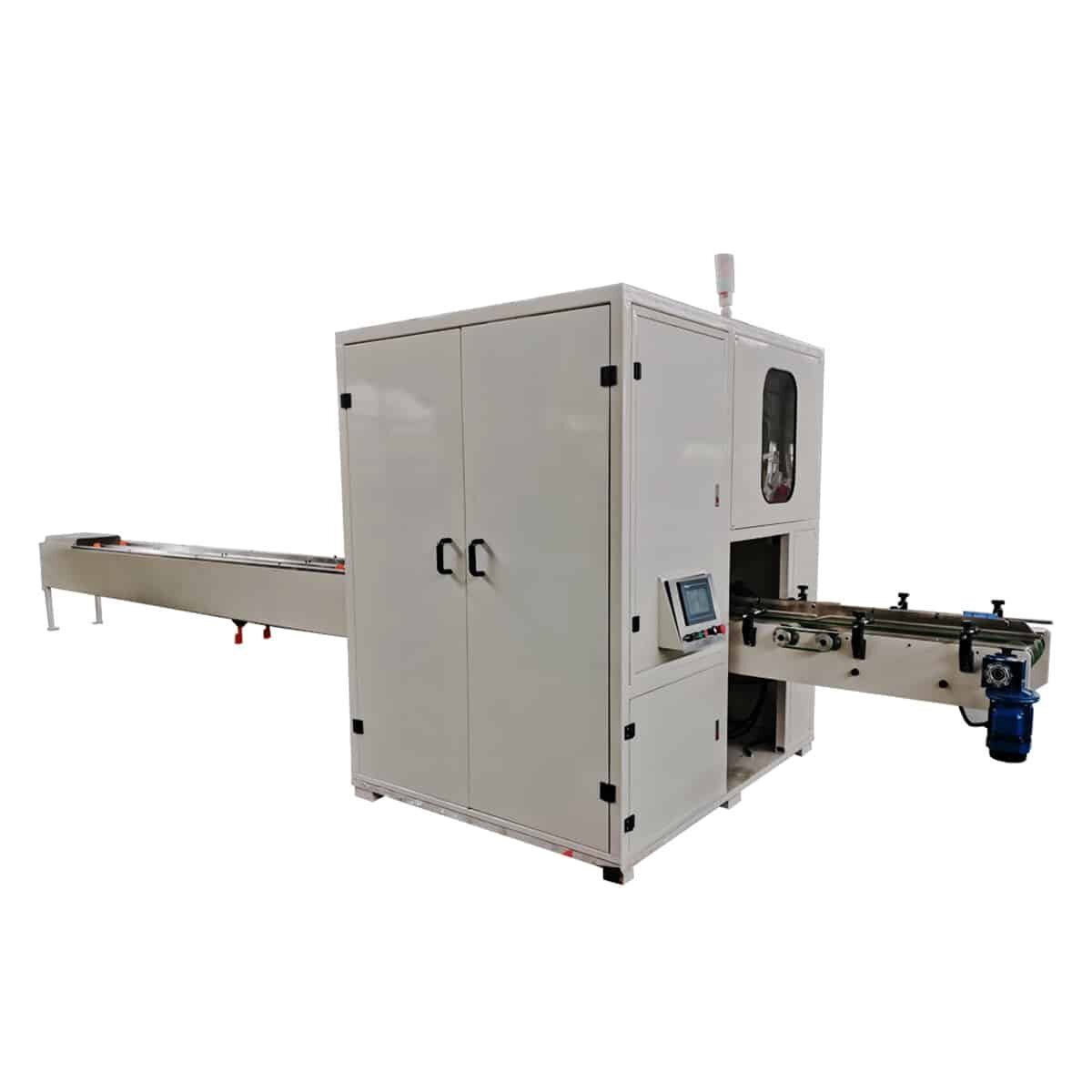

sp280 automatic toilet roll paper log saw cutting machine

Double Channel Log Saw Machine is used for cutting the toilet paper roller and kitchen towel paper roller, it’s with high automation and efficient. Adopts advanced servo driving system, frequency conversion speed regulating, PLC control and touching screen operation.

Additional information

Model	SP280
Structure of machine	Wallboard
size of finished product(mm)	diameter:90-120mm length:≦300mm
Machine type	cutting
Raw material type	roll log
Size of raw material	≦2850mm(it can be made according to customer request)
Diameter of core	3inches

This equipment adopt frequency control, PLC , servo tracking control, integrate light, electricity and air together to realize automatic control system, man-machine interface operation type, change the sharpening time,cutting speed,cutting length flexibility. The safety protection function of equipment is reliable. This machine is the idea equipment for production line , which enjoy nice cutting, high efficiency.

Technical: Control system: servo tracking, PLC, LCD touch screen display.
Cutting length: Servo tracking (adjustable)
Sharpening system: automatic, time adjustable.
Production speed：60-90 cut/minute
Overall dimension：6800×1500×1920 mm
Round knife size: ¢610MM
Power: 6.77KW(380V，50Hz)
Air pressure: 0.5Mpa ( prepared by buyer’s)
Feeding and discharge can choose automatic connect line function.
