PRODUCT

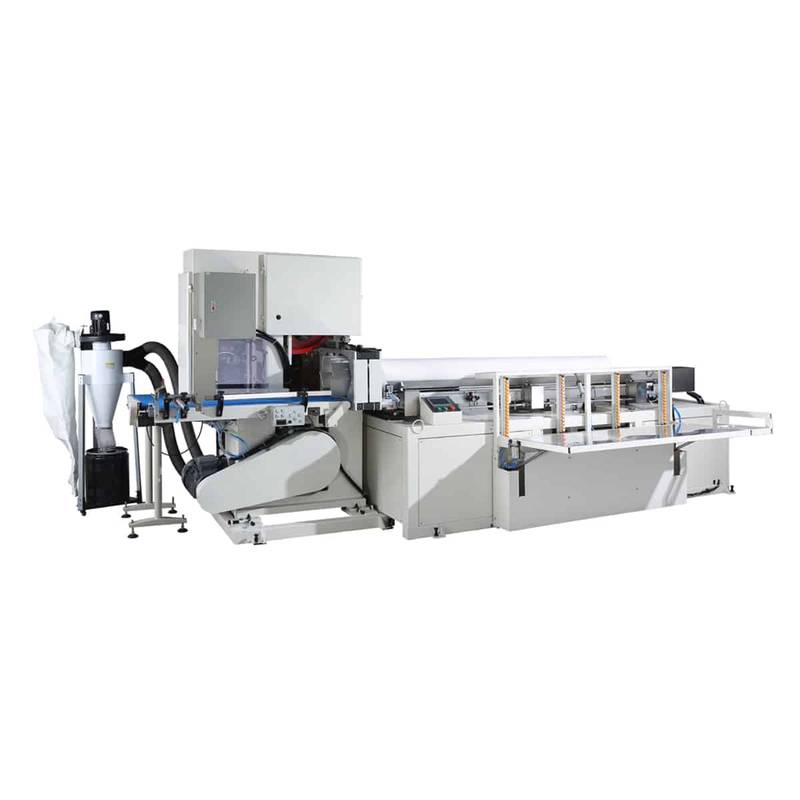

The band saw cutting machine for big diameter towel paper, maxi roll paper, industiral non-woven.

Additional information

Model	SP450
Structure of machine	Wallboard
size of finished product(mm)	diameter:100-300mm length:≦400mm
Machine type	cutting
Raw material type	roll log
Size of raw material	≦2850mm(it can be made according to customer request)
Diameter of core	none

Technical performance characteristic：

The equipment is the latest research and development which is the extension of the company with the current market situation. Using PLC program control, big screen true color human﹣computer interface. The precise servo control feed length, electromechanical integration control and other international advanced technology con automatically detect each key action, has good fault information prompt system, make the whole production line achieving the best working state.

Feature and function:

1.The main motor using the inverter independent drive.
2.For one set of machine, the cutting diameter of paper roll is adjustable as 150~300mm.
3.The equipment adopts automatic sharpening system, grinding wheel can be automatic feeding adjustment according to the blade loss.
4.The grinding system is equipped with an independent dust removal device to ensure the working environment.
5.The band saw adopts hydraulic tension system to ensure the tension of band saw.
6.It will be automatic stop and alarm when the knife is broken.
7.High precision servo system is used to ensure the quality of finished products.
8.According to the raw materials and the length of finished products, the number of finished products can be calculated automatically.
9.The device stops working and prompts the interface when the input data is wrong.
10.Using band saw for cutting and reduces the cost of use of users.
11.The thickness of finished paper core should less 3mm(Suggestion)
