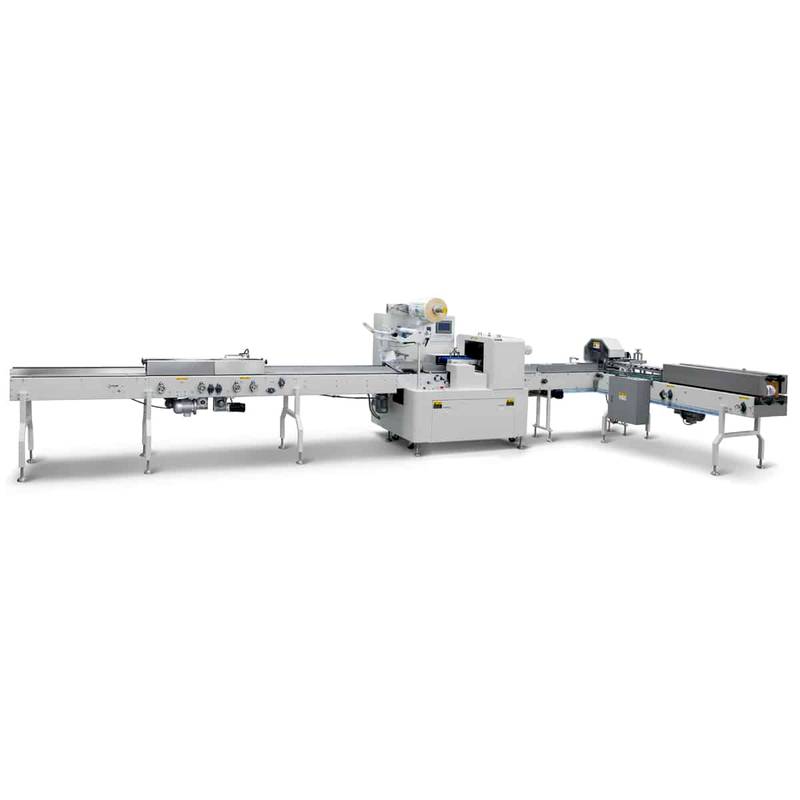

SP503 automatic single toilet paper roll packing machine - China tissue paper machine manufacturer

This equipment can be connected with log saw machine and roll multi pack machine to form an automatic processing line.Capacity:80-160rolls/minute.

Additional information

Model	SP503
Structure of machine	Wallboard
size of finished product(mm)	Diameter: Φ90-120mm,Height:95-200mm
Machine type	film packing
Raw material type	film
Size of raw material	SPP 1.Film thickness：0．018mm ～0．035 mm 2. Film roller maximum diameter：Φ380mm 3.Film roller inner diameter：Φ75mm～78mm 4. Film maximum width:430 mm
Diameter of core	none

1. This machine is suitable for single toilet roll paper packaging. It can pack coreless and with core roll paper.
2. Adopting the advanced electronic technology and servo drive technology, the positioning is more accurate and the man-machine interface .
3. Perfect automatic fault tracking and alarm system, high precision photoelectric tracking system
4. Automatic material handling, automatic shutdown in case of empty package or failure, film cutting without sticking knife, no waste of film.
5. Intelligent temperature control meter is adopted to make temperature control convenient and fast
6. It can connect with automatic log saw machine and packing machine to be a production line, saving people and high efficiency.
