The full line machine cutting and packing n,v,m folding hand towel paper

Additional information

Model	FT603FT400
Structure of machine	Wallboard
size of finished product(mm)	n.v.m fold hand towel paper
Machine type	cutting and packing
width of raw material	nylon film
Diameter of raw material	customized
Diameter of core	customized

full auto hand towel paper band saw cutter and packing machine full line including below two machine:

1. CIL-FT-400 Automatic Folding Hand Towel Paper Cutting Machine

The equipment is operated by using PLC program control, big screen true color human﹣computer interface. The precise servo control feed length, electromechanical integration control and other international advanced technology con automatically detect each key action, has good fault information prompt system, make the whole production line achieving the best working state.

Feature and function:

1.When the paper can not be cut down,
the equipment will automatically stops and gives an alarm;
2.The high precision servo system is used in the feed motor servo system,
to ensure the quality of the finished product;
3.The equipment automatically calculate the quantity of the finished product being cut;
according to the raw material and the length of the finished product;
4.When data input is incorrect, the equipment breaks off and prompts to adjust on the interface;
5.The waste paper head and paper end can be automatically sorted;
6.The automatic sharpening knife system is used in the equipment,
can adjust the sharpening knife system according the requirement of paper being cut, which increase the cutting life;
7.The sharp steel wheel is used in the sharpening knife system, which increase the sharpening knife efficiency
Data sheet:
1.Cutting speed：30～40cuts/minute
2.Finished paper length ≦240mm
3.Finished paper width: 120-220mm
4.Finished paper height:80-100mm
5.Power supply:5kw 380V 50HZ 3 phase
6.Overall size:2800x1000x2000mm
7.Machine weight:1000KG

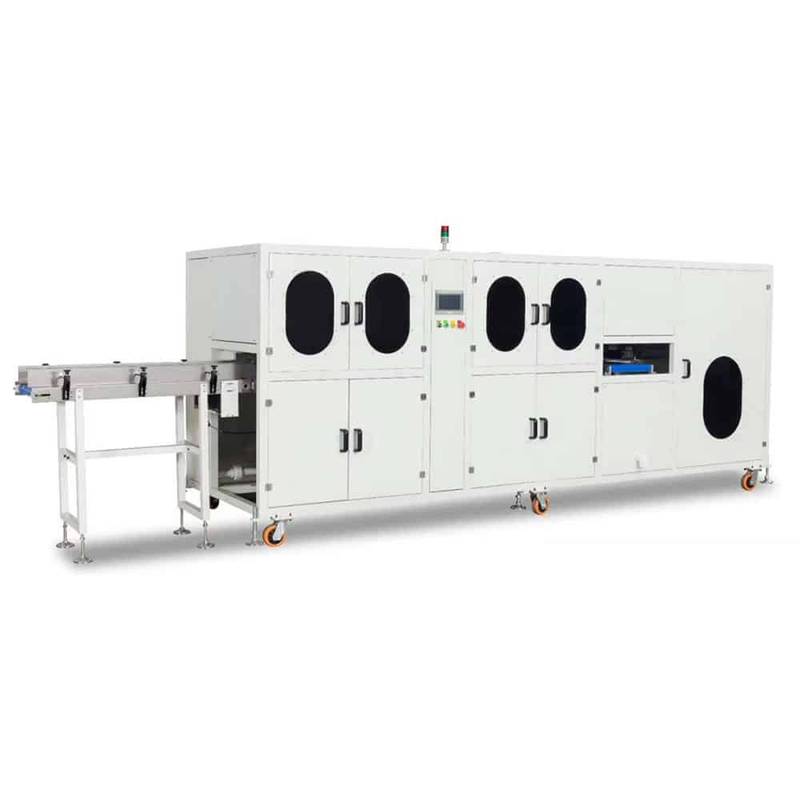

2. CIL-FT-603 Automatic Folding Hand Towel Paper Packing Machine

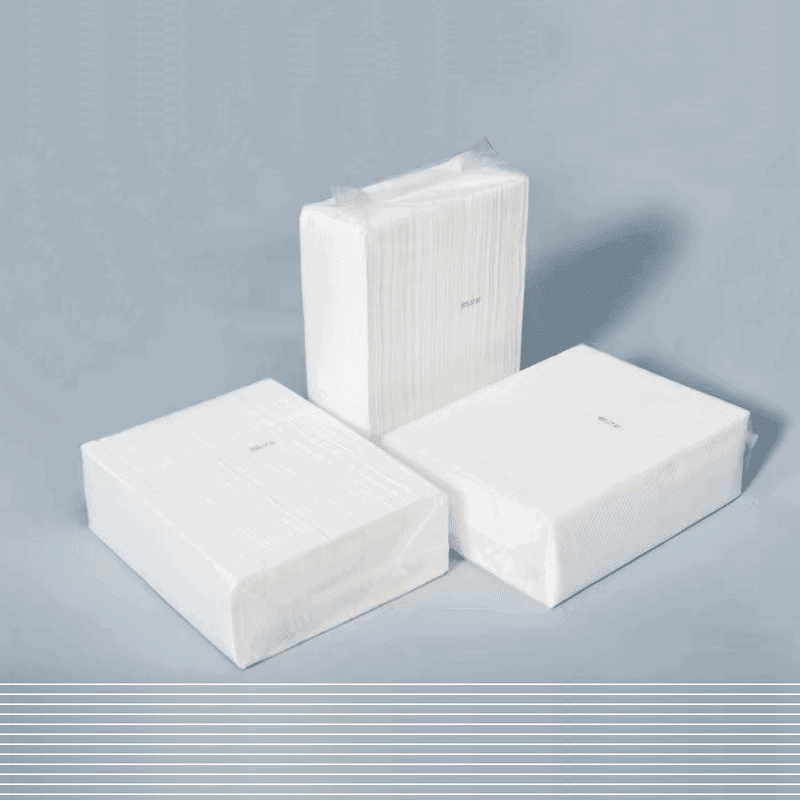

This machine use plastic bag film to pack N ,V or M folding hand towel paper.

Function and characteristic:

1. Touch screen man-machine interface, convenient and quick parameter setting,
2. Automatic fault diagnosis function, fault display at a glance.
3. From bagging to seal forming, the whole process are protected by side guard,
effectively avoid the phenomenon of broken bags
4. The constant temperature of the hot plate control by imported temperature controller
ensure that the seal is more reliable and no false seal
5. Four directions for dynamic supporting mechanism,
and effectively improve the stability and open the bag bag

Technical parameter:
1) Packaging Specifications(MAX): 20-30 bags per min
2) Packing size:
L150~220mm*W120-200mm*H80-100mm
3) Packing film: CPP/PE/PT pre-made plastic bags
4) Roll film width:≦180mm
Roll film diameter:≦600mm
Roll film core diameter:75mm
5)Machine size(L*W*H):4.7×1.1×1.9m
6)Total Power Supply: 3.0kw AC220V ,50HZ
7)Weight:2000kg
