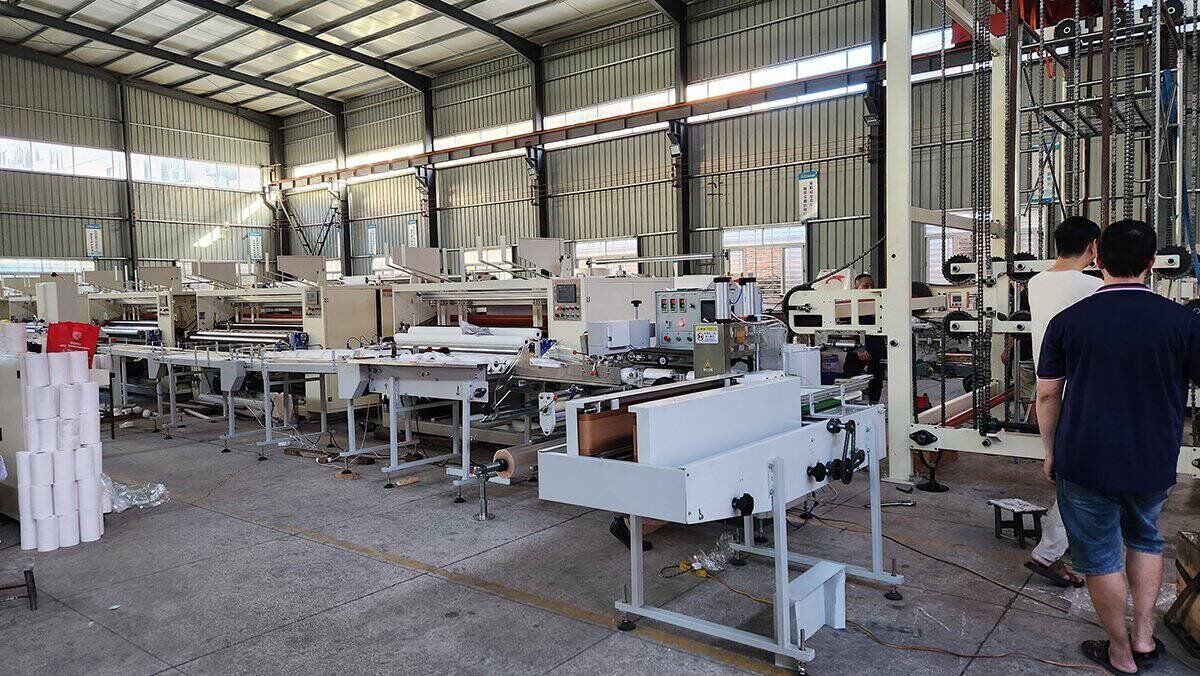

the auto toilet paper roll packing line including two part:

1)roll packing machine

2)edge ironing machine

Additional information

Model

XDKL-950D

Film width

max 950mm

Bag length

150-450mm

bag width

200-460mm

product height

max 150mm

packing speed

20-40bag/minute

power

220v/380v – 50hz/60hz

Features:

01. Full servo control system, all independent programming, all controlled by the software to facilitate the function of restructuring and technological upgrading, advanced (With feeding machine production line,can connect with the paper cutting machine, )

02 human-machine operation, convenient and quick parameter setting.

03. Fault self-diagnosis function, clear failure display.

04. Sensitivity photoelectric eye tracking, digital input cut position which makes the cutting position more accurate.

05. automatically recognizes the bag length according to tissue products, machine adjustment is simple.

06. Positioned stop function, without sticking knife, CPP and CPP-sided heat sealing film and color packaging films can be packaged, not wasting film.

07. Simple driving system, reliable working, convenient maintenance.

08. It can automatically connect with roll Cutter, without manual working,  saving labor costs.

09. No product machine will stop,will not have empty bag. never waste film.

10.Variable frequency stepless speed adjustment, convenient, fast and stable .

11.Independent control on both sides of ironing temperature, digital setting and display;

12.Stainless steel structure, clean and tidy;

13.Independent control of the whole machine, no need to be connected with the upper computer, and it can enter the standby state directly after starting.
